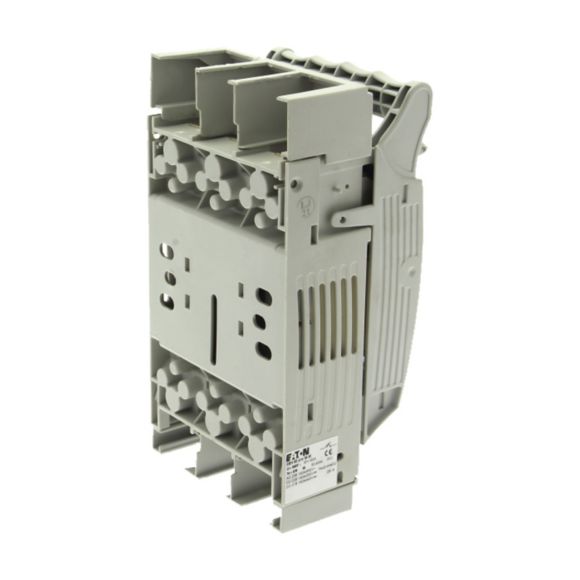

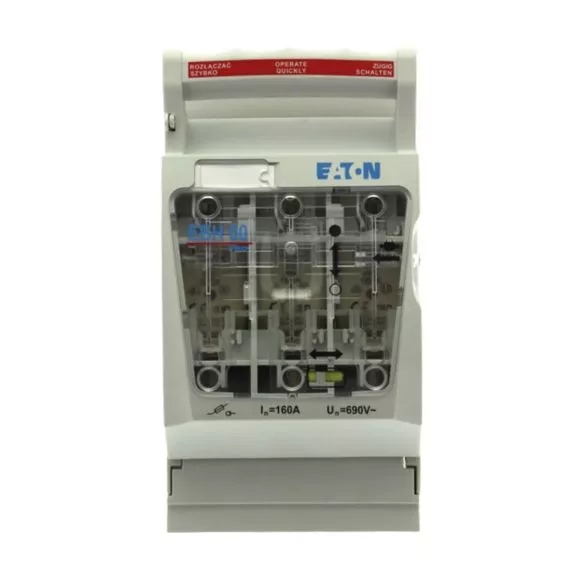

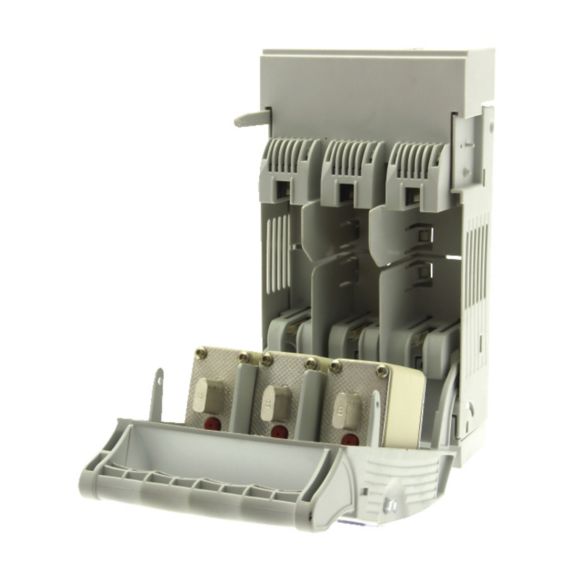

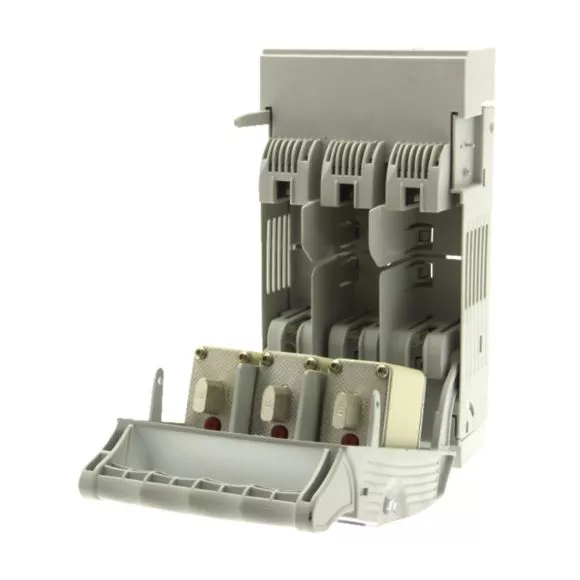

EBH00013TTM8 Rozłącznik bezpiecznikowy poziomy, 160 A, AC 690 V, NH000, AC21B, 3P, IEC, montaż na szynie 60mm: śruby M8, dolny terminal kablowy
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | EBH00013TTM8 |
GTIN(EAN) | 5906739005345 |
Price unit | piece |
Catalog price | 822,38 zł (668,60 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 921 g |
ETIM class: | Fuse switch disconnector |
Version as main switch: | no |
Version as safety switch: | no |
Max. rated operation voltage Ue AC: | 690 V |
Rated permanent current Iu: | 160 A |
Rated operation power at AC-23, 400 V: | 0.064 kW |
Conditioned rated short-circuit current Iq: | 0.1 kA |
Suitable for fuses: | NH000 |
Number of poles: | 3 |
With error protection: | no |
Type of electrical connection of main circuit: | Screw connection |
Cable entry: | Other |
Equipped with connectors: | no |
Suitable for floor mounting: | no |
Suitable for front mounting: | no |
Suitable for busbar mounting: | yes |
Type of control element: | Cover grip |
Position control element: | Front side |
Motor drive optional: | no |
Motor drive integrated: | no |
Version as emergency stop installation: | no |
Degree of protection (IP), front side: | IP30 |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-09-23 00:04:23 |
Files to download: |
|
External links: |
