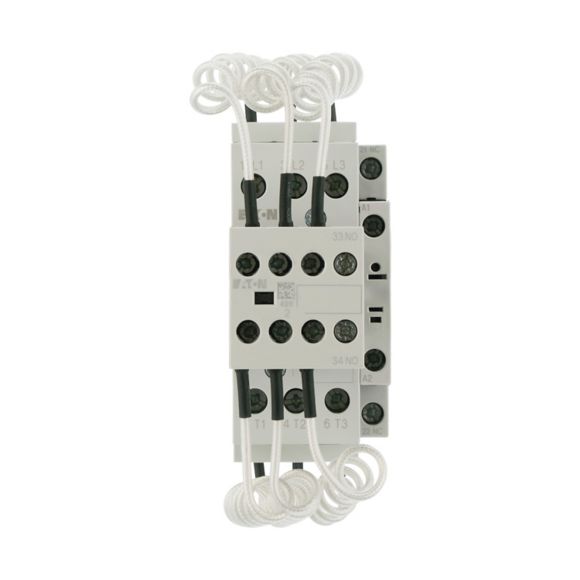

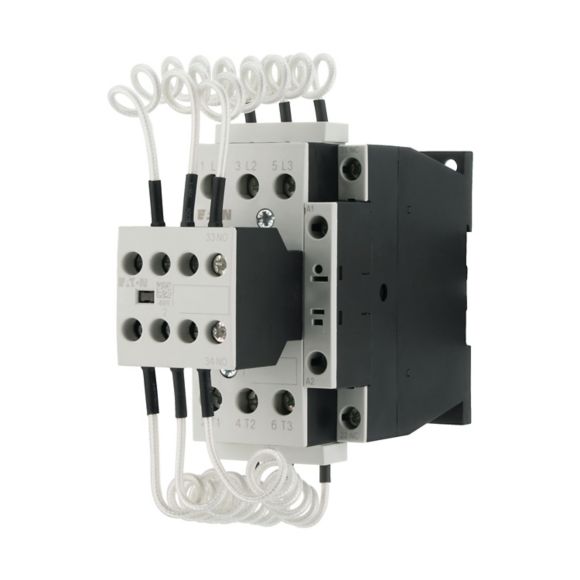

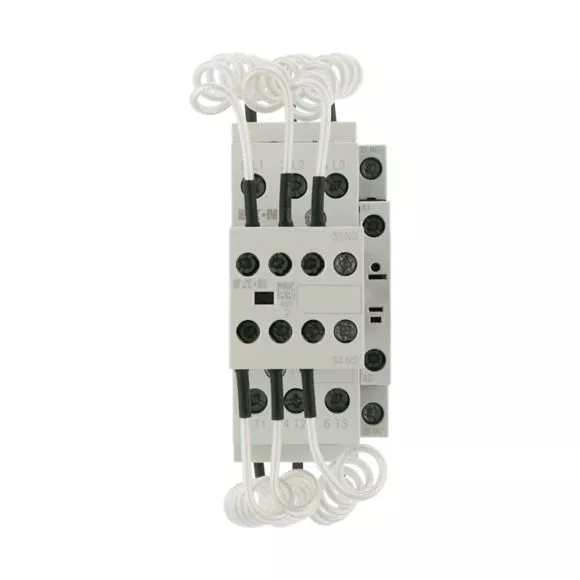

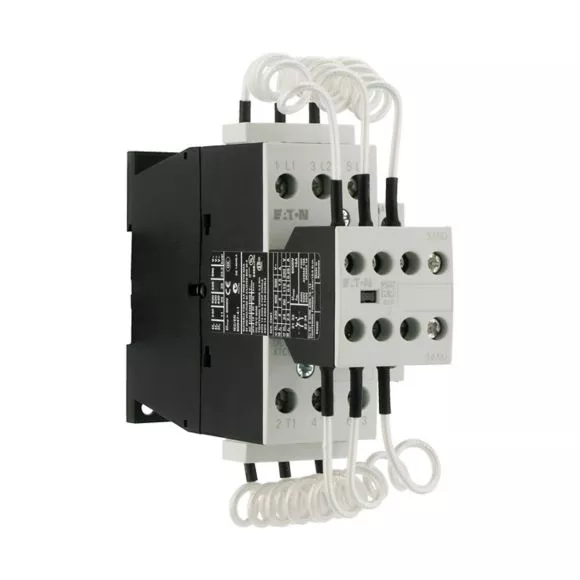

DILK12-11(230V50HZ,240V60HZ) Stycznik do baterii kondensatorów Q=12,5
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 293988 |
| GTIN(EAN) | 4015082939885 |
| Price unit | piece |
| Catalog price | 497,17 zł (404,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Do łączenia w centralne instalacje kompensacji z 180-krotnymi szczytami prądu włączającego. Kondensatory są wstępnie ładowane przez wyprzedzające łączniki pomocnicze i druty oporowe, przez co ograniczany jest prąd włączeniowy.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 510 g |
| Country of origin | Rumunia |
| ETIM class: | Capacitor contactor |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 240 - 240 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Rated blind power at 400 V, 50 Hz: | 12.5 kvar |
| Operating voltage AC 50 Hz: | 230 - 690 V |
| Operating voltage AC 60 Hz: | 230 - 690 V |
| Rated switch current: | 18 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Width: | 45 mm |
| Height: | 135 mm |
| Depth: | 138 mm |
