BF-UT-6/144-P Rozdzielnice podtynk;drzwi transparentne
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 289136 |
| GTIN(EAN) | 4015082891367 |
| Price unit | piece |
| Catalog price | 3 996,27 zł (3 249,00 zł + 23% VAT) |
| Sale price | from 857,13 zł / szt. (696,85 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

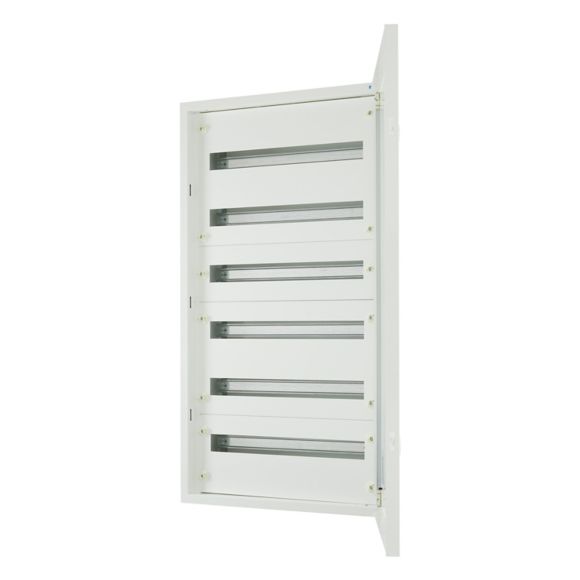

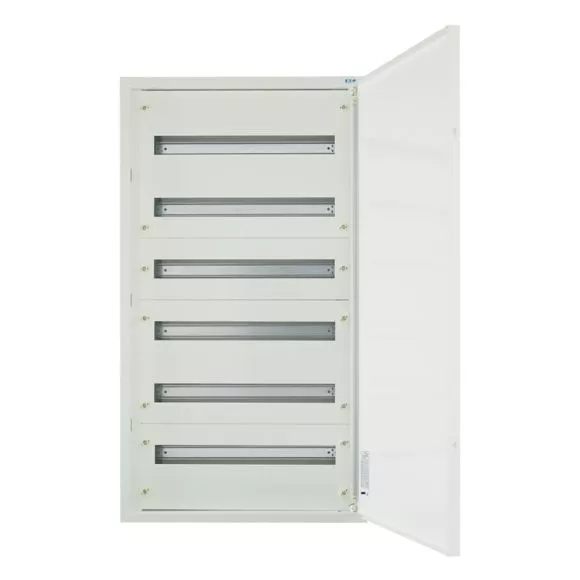

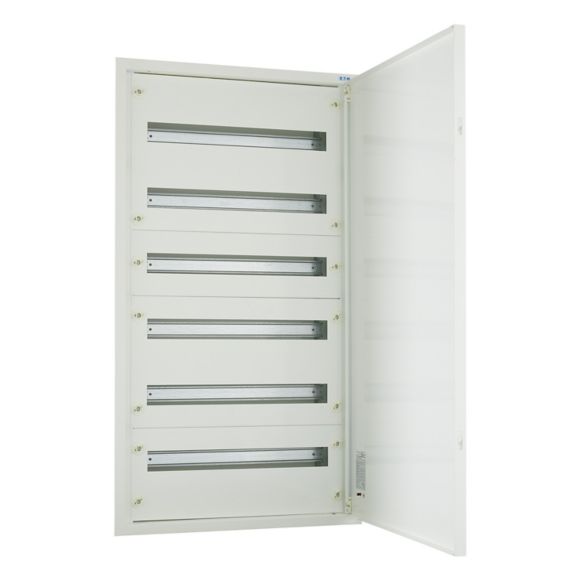

Complete BF-U-./..-P flush-mounted distribution board, white RAL 9016, 24 space units per row, 6 rows, height 1070mm, width 588 mm, depth 136 mm, including door and transparent panel, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane, cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock and transparent panel included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) is available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit, a universal mounting plate can be installed using an installation kit for flush-mounted enclosures (BFZ-U-MPL..). electrical contact for metal front plate achieved with special lock on enclosure
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16,54 kg |
| Country of origin | Czechy |
| ETIM class: | Small distribution board |
| Mounting method: | Flush-mounted |
| Number of rows: | 6 |
| Width in number of modular spacings: | 24 |
| Type of covering: | Door |
| Cover model: | With notch |
| Transparent cover/door: | yes |
| Housing material: | Steel |
| Height: | 1080 mm |
| Width: | 600 mm |
| Depth: | 140 mm |
| Built-in depth: | 127 mm |
| Built-in height: | 1020 mm |
| Built-in width: | 560 mm |
| Inner depth: | 127 mm |
| Earthing terminal block: | yes |
| Neutral terminal block: | yes |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | no |
| EMC-version: | yes |
| Colour: | White |
| RAL-number: | 9016 |
| Degree of protection (IP): | IP30 |
| With lock: | no |
| Type of closure: | Other |
| Signal passing door: | yes |
| Type of door: | Single |
| UV resistant: | no |
