BF-OT-6/144-P Rozdzielnice natynk; drzwi transparentne
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 289132 |
| GTIN(EAN) | 4015082891329 |
| Price unit | piece |
| Catalog price | 4 204,14 zł (3 418,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

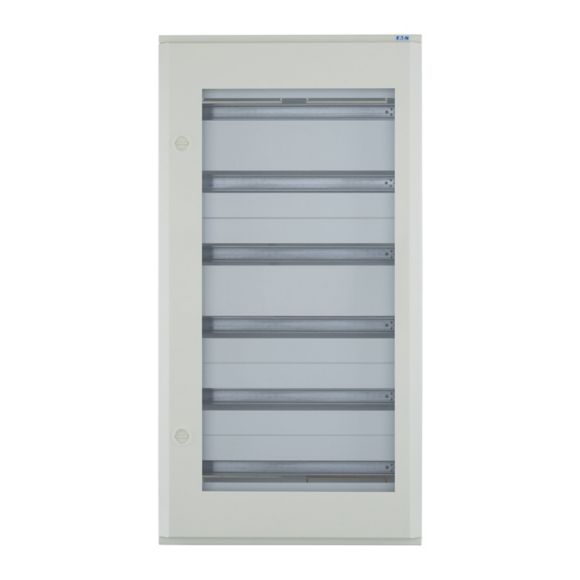

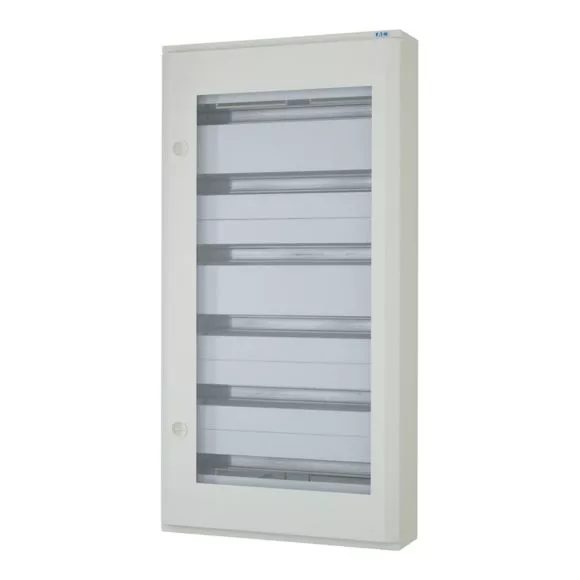

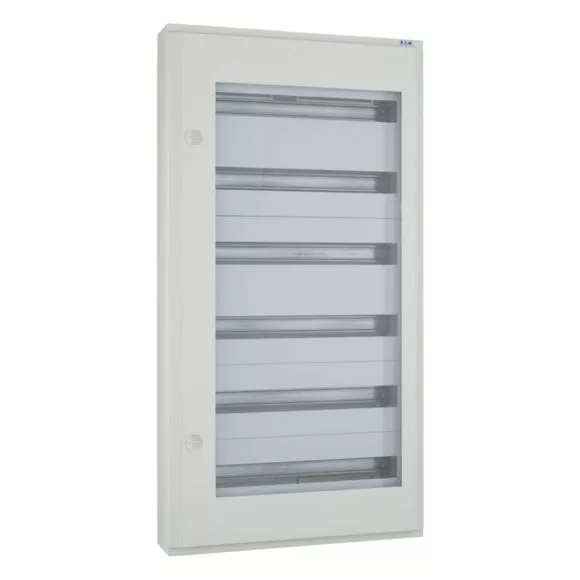

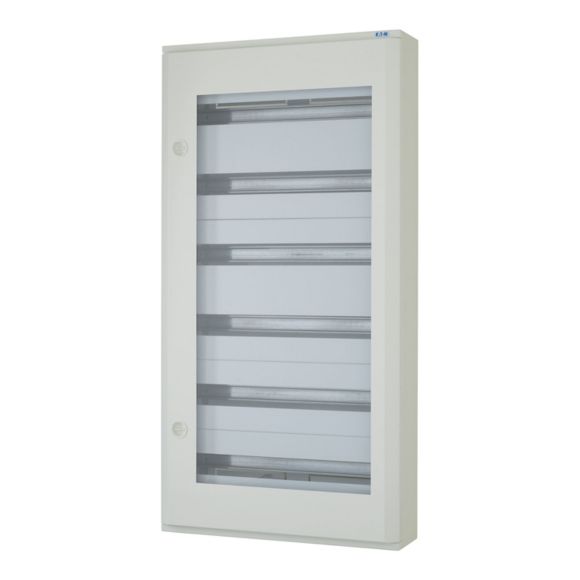

Complete BF-O-./..-P surface-mounted slim distribution board, white RAL 9016, 24 space units per row, 6 rows, height 1050mm, width 543 mm, depth 140 mm, including door and transparent panel, front plates, DIN-rail mounting frame and neutral/PE terminals. Enclosure: closed design, including back plate, back plate can be used as a fixing plane, 2 cable gland plate inserts for slim distribution boards with a width of 24 space units, top, knockout cable entry openings on the bottom, terminals pre-assembled on enclosure (no loss of space units). Wall trough with door frame, back plate can be used as a fixing plane, cable entry openings that are easy to knock out, 127 mm depth, terminals pre-assembled on enclosure (no loss of space units), 4 side fixing brackets. Sheet steel door with cam lock and transparent panel included as standard, sheet steel door with expanded depth (required, for example, in order to install RMQ components in the door) (BFZ-OTR-./...) is available as an accessory. Removable DIN-rail mounting frame, for 45 mm modular installation devices, 150 mm DIN busbar distance, Eaton circuit-breakers can be integrated with installation kit, a universal mounting plate can be installed using an installation kit for surface-mounted enclosures (BFZ-O-ITMPL..). electrical contact for metal front plate achieved with special lock on enclosure
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16,2 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Number of rows: | 6 |
| Width in number of modular spacings: | 24 |
| Type of covering: | Door |
| Cover model: | With notch |
| Transparent cover/door: | yes |
| Housing material: | Steel |
| Height: | 1060 mm |
| Width: | 555 mm |
| Depth: | 150 mm |
| Built-in depth: | 150 mm |
| Built-in height: | 1060 mm |
| Built-in width: | 555 mm |
| Inner depth: | 131 mm |
| Earthing terminal block: | yes |
| Neutral terminal block: | yes |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | no |
| EMC-version: | yes |
| Colour: | White |
| RAL-number: | 9016 |
| Degree of protection (IP): | IP30 |
| With lock: | no |
| Type of closure: | Other |
| Signal passing door: | yes |
