M22-WLKV-B NAPĘD PRZEŁĄCZNIKA PODŚWIETLANY, POŁOŻEN
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 284397 |
GTIN(EAN) | 4015082843977 |
Price unit | piece |
Catalog price | 100,68 zł (81,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

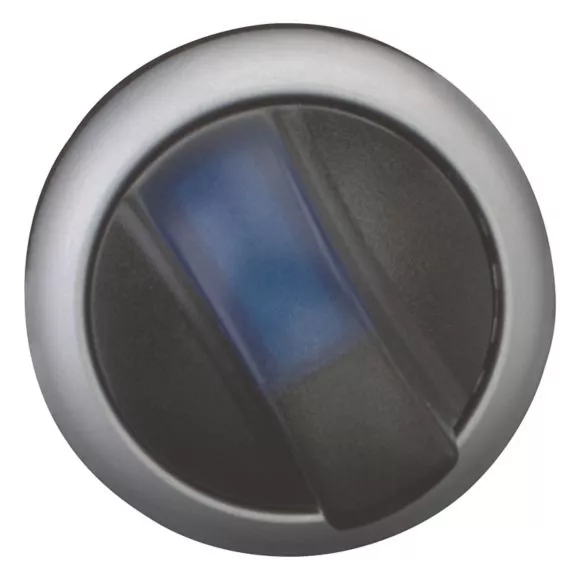

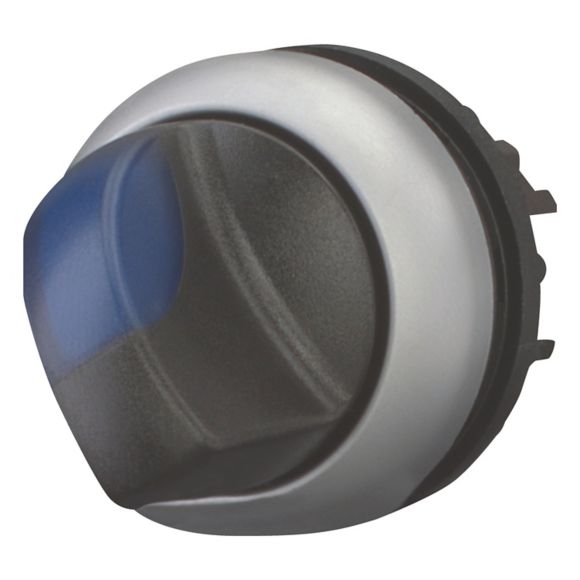

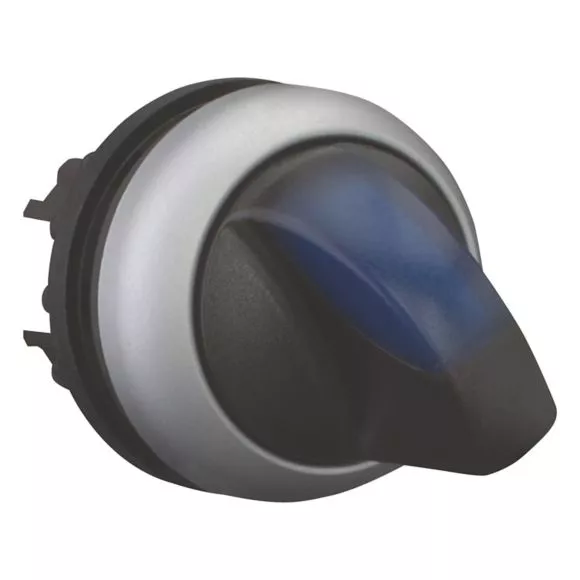

Illuminated selector switch actuator, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, maintained, 2 positions (V position), Colour Thumb-grip: Blue, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66
Additional features:
Information | Value |
---|---|
Net weight: | 14 g |
ETIM class: | Front element for selector switch |
Number of switch positions: | 2 |
Type of control element: | Toggle |
Suitable for illumination: | yes |
Colour control element: | Black |
Colour indicator light cap: | Blue |
Construction type lens: | Round |
Hole diameter: | 22.5 mm |
Width opening: | 0 mm |
Height opening: | 0 mm |
Switching function latching: | yes |
Spring-return: | no |
With front ring: | yes |
Material front ring: | Plastic |
Colour front ring: | Titanium |
Degree of protection (IP), front side: | IP66 |
Degree of protection (NEMA): | 4X, 13 |
