BC-U-1/8-TW-ECO szafka podtynkowa, drzwi białe, IP40, 8
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 281697 |
GTIN(EAN) | 4015082816971 |
Price unit | piece |
Catalog price | 179,33 zł (145,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

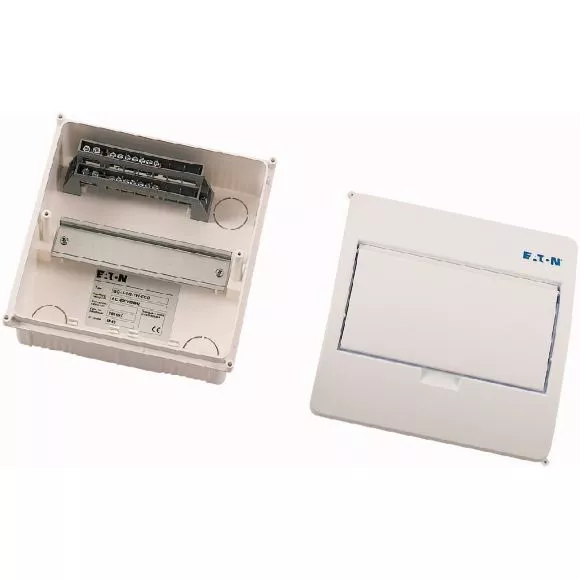

ECO Compact distribution board, flush mounting, white RAL9003, IP40 degree of protection to IEC/EN 62208, 8 module units, 1-row, protection class 2, totally insulated, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, enclosure completely made of ABS, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm, AC 400 V, roHs-compliant, consisting of a plastic base with a top hat DIN-rail made of galvanized sheet steel, finger-proof IP2X neutral and protective conductor terminals, knockout cable entries on top and bottom, top with 46-mm device opening, white hinged flap flush with the front and featuring open-position latching, operator only with screw closures, top with sealable bottom, including inscription labels.
Additional features:
Information | Value |
---|---|
Net weight: | 600 g |
ETIM class: | Small distribution board |
Mounting method: | Flush-mounted |
Number of rows: | 1 |
Width in number of modular spacings: | 8 |
Type of covering: | Door |
Cover model: | Closed |
Transparent cover/door: | no |
Housing material: | Plastic |
Height: | 125 mm |
Width: | 205 mm |
Depth: | 205 mm |
Built-in depth: | 70 mm |
Built-in height: | 0 mm |
Built-in width: | 0 mm |
Inner depth: | 98 mm |
Earthing terminal block: | no |
Neutral terminal block: | no |
DIN-rail: | yes |
With mounting plate: | no |
Extension possible: | no |
EMC-version: | no |
Colour: | White |
RAL-number: | 9003 |
Degree of protection (IP): | IP40 |
With lock: | no |
Type of closure: | Other |
Signal passing door: | no |
