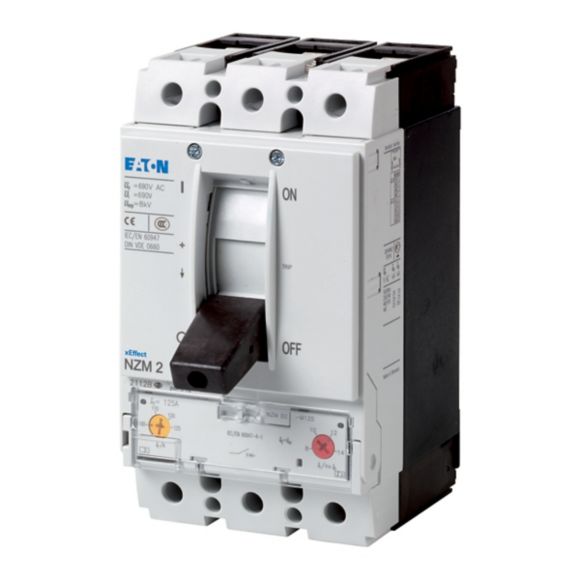

NZMH2-M50 Wyłącznik mocy 3-bieg. 50A BG2 zabezpiec
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 281303 |
| GTIN(EAN) | 4015082813031 |
| Price unit | piece |
| Catalog price | 2 236,87 zł (1 818,59 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki serii NZM..-M swoimi zaledwie czterema kompaktowymi wielkościami sprawdzają się we wszystkich zastosowaniach oraz nadają się na rynek IEC. Montaż jest zawsze elastyczny za pomocą modułowych grup funkcyjnych. Z termomagnetycznym wyzwalaczem do ochrony silnika. Wskazówki: klasa wyzwolenia 10A., IEC/EN 60947-4-1, IEC/EN 60947-2 wyłączniki naprądowe spełniają wszystkie wymogi kategorii użytkowej AC-3.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,345 kg |
| Country of origin | Rumunia |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 40 - 50 A |
| Adjustment range undelayed short-circuit release: | 400 - 700 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | no |
| Switch off technique: | Thermomagnetic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 50 A |
| Rated operation power at AC-3, 230 V: | 15 kW |
| Rated operation power at AC-3, 400 V: | 22 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 130 kA |
| Degree of protection (IP): | IP20 |
| Height: | 184 mm |
| Width: | 105 mm |
| Depth: | 149 mm |
| Power loss: | 17 W |
