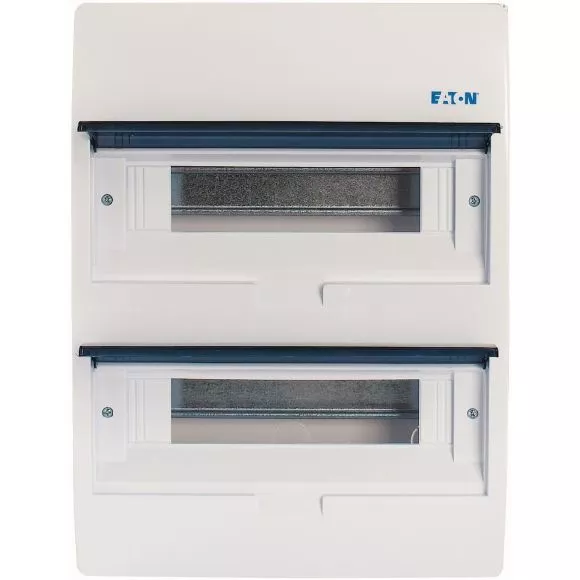

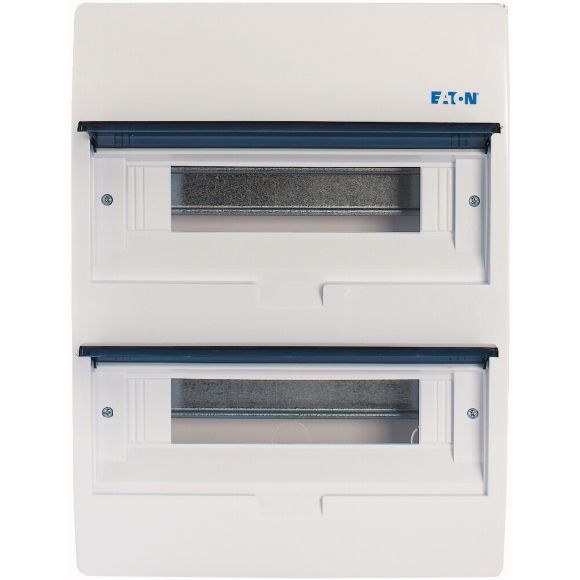

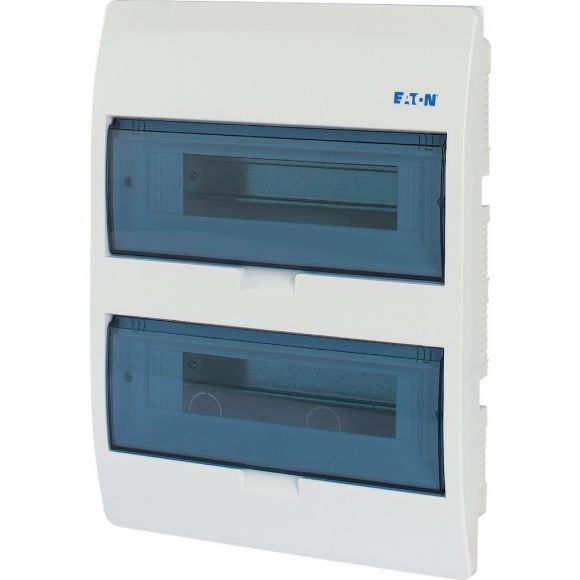

BC-U-2/24-ECO Szafka podtynkowa, IP40, 24 mod (2x12)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 280356 |
| GTIN(EAN) | 4015082803568 |
| Price unit | piece |
| Catalog price | 451,16 zł (366,80 zł + 23% VAT) |
| Sale price | from 76,54 zł / szt. (62,23 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

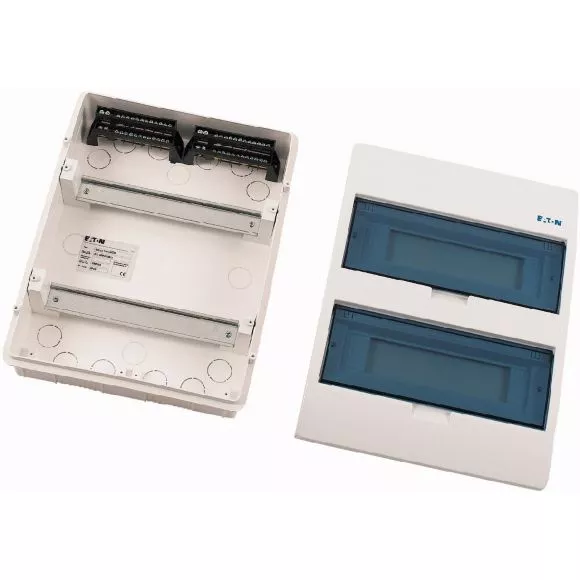

ECO Compact distribution board, flush mounting, white RAL9003, IP40 degree of protection to IEC/EN 62208, 12 module units, 2-rows, protection class 2, totally insulated, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, enclosure completely made of ABS, for installing switching and protective devices, in accordance with dimension standard DIN 43 880, with an installation depth of 70 mm, AC 400 V, roHs-compliant, consisting of a plastic base with a top hat DIN-rail made of galvanized sheet steel, finger-proof IP2X neutral and protective conductor terminals, knockout cable entries on top and bottom, top with 46-mm device opening, transparent hinged flap flush with the front and featuring open-position latching, operator only with screw closures, top with sealable bottom, including inscription labels.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,6 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Flush-mounted |
| Number of rows: | 2 |
| Width in number of modular spacings: | 12 |
| Type of covering: | Door |
| Cover model: | Closed |
| Transparent cover/door: | yes |
| Housing material: | Plastic |
| Height: | 110 mm |
| Width: | 310 mm |
| Depth: | 420 mm |
| Built-in depth: | 70 mm |
| Built-in height: | 0 mm |
| Built-in width: | 0 mm |
| Inner depth: | 95 mm |
| Earthing terminal block: | no |
| Neutral terminal block: | no |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | no |
| EMC-version: | no |
| Colour: | White |
| RAL-number: | 9003 |
| Degree of protection (IP): | IP40 |
| With lock: | no |
| Type of closure: | Other |
| Signal passing door: | no |
