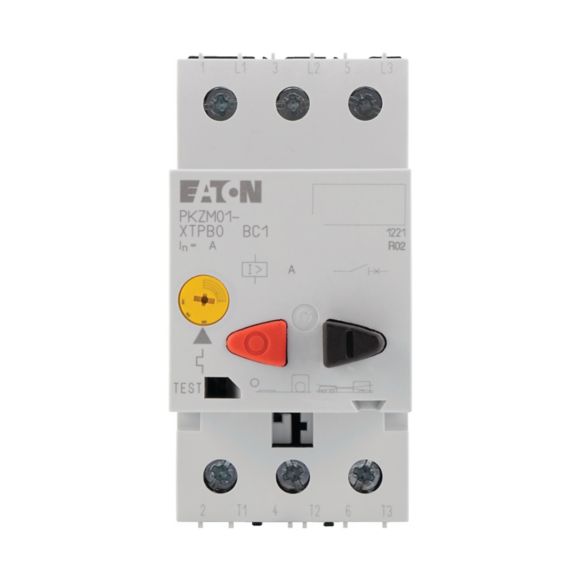

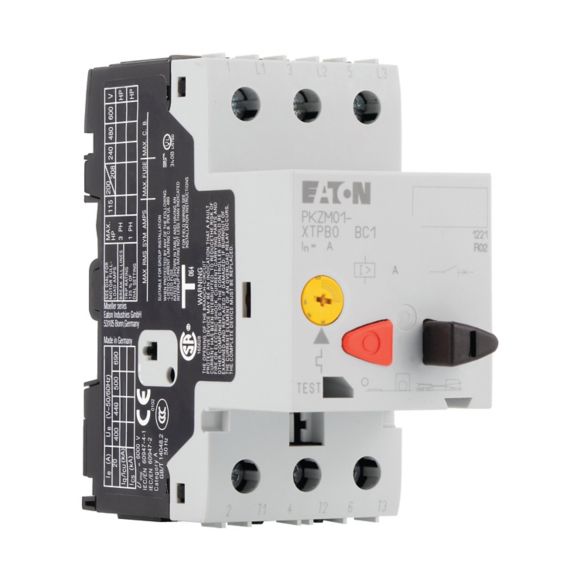

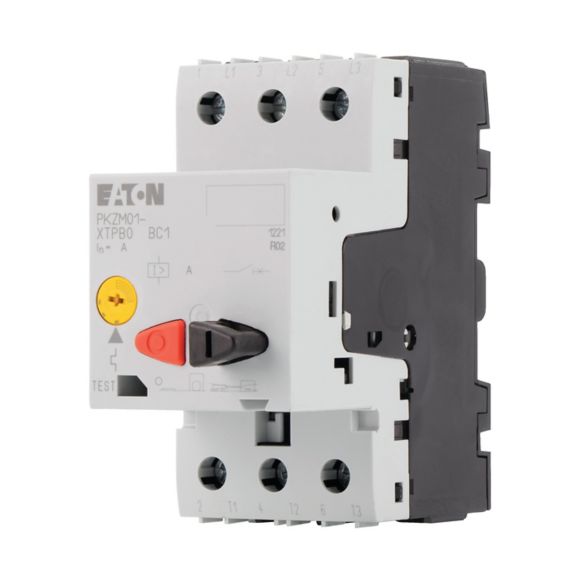

PKZM01-1,6 wył. Silnik. 1,6A 0,55kW z nap przycisk
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 278480 |
GTIN(EAN) | 4015082784805 |
Price unit | piece |
Catalog price | 384,38 zł (312,50 zł + 23% VAT) |
Sale price | from 165,34 zł / szt. (134,42 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy zgodny z IEC/EN60947, 3-biegunowe wielkość konstrukcyjna PKZM 01, z regulowanym wyzwalaczem przeciążeniowym i zwarciowym bez opóźnienia, czuły na brak fazy, mocowanie na śruby i zaciski, wymiary montażowe zatyczki 45mm, znamionowe napięcie pracy Ue 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, dostępne akcesoria: łącznik pomocniczy, wyzwalacz napięcia
Additional features:
Information | Value |
---|---|
Net weight: | 292 g |
Country of origin | Niemcy |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 1 - 1.6 A |
Adjustment range undelayed short-circuit release: | 25 - 25 A |
With thermal overload protection: | no |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 440 - 440 V |
Rated permanent current Iu: | 1.6 A |
Rated operation power at AC-3, 230 V: | 0.25 kW |
Rated operation power at AC-3, 400 V: | 0.55 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Push button |
Device construction: | Built-in device fixed built-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
Degree of protection (IP): | IP20 |
Height: | 90 mm |
Width: | 45 mm |
Depth: | 93 mm |
Power loss: | 5.36 W |
