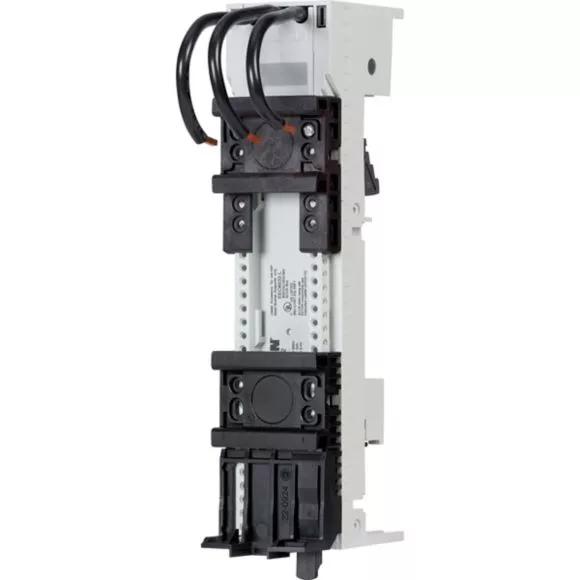

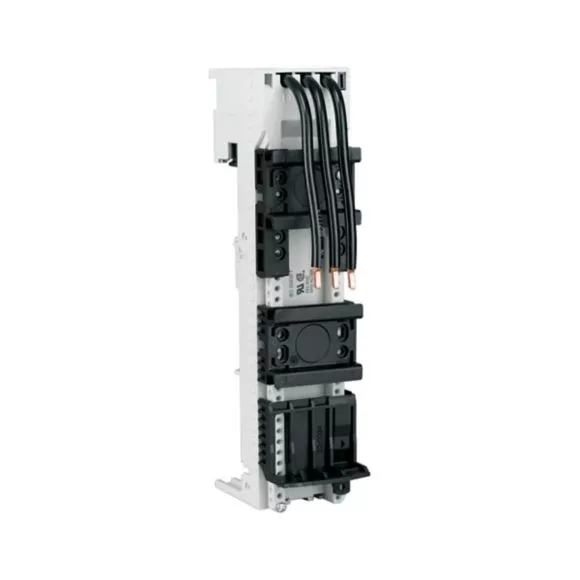

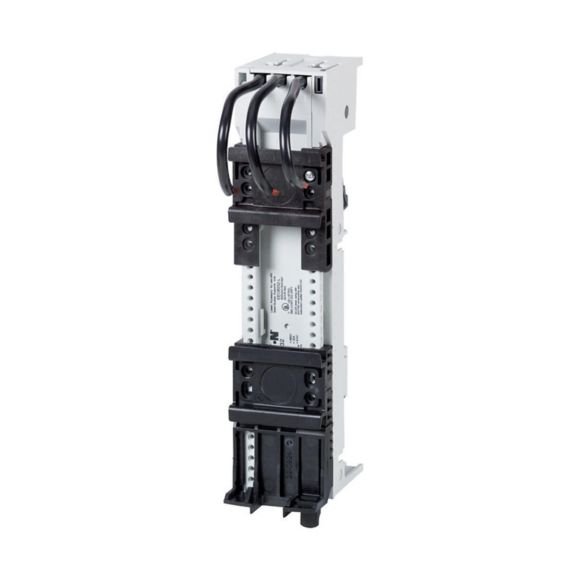

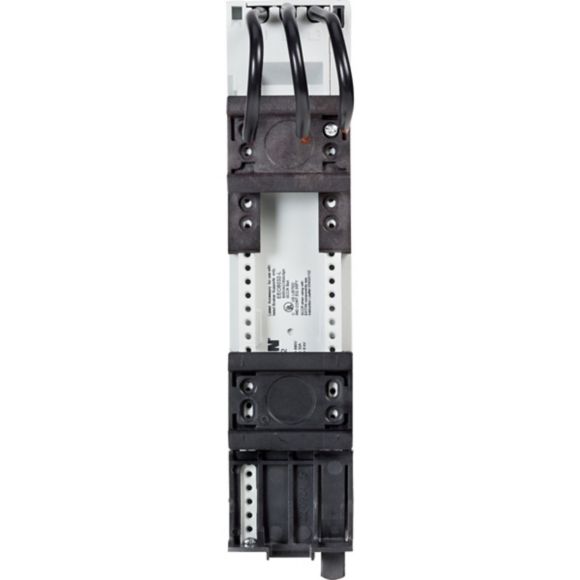

BBA0-32 Adapter na szyny zbiorcze szer. 45mm 32A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 101452 |
| GTIN(EAN) | 4015081013722 |
| Price unit | piece |
| Catalog price | 456,21 zł (370,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
45mm adapter na szyny zbiorcze do 60mm systemu szyny zbiorczej, dwie szyny nośne, trzy odpowiednio dobrane przewody (AWG10 / 6mm²) umożliwiające podłączenie do aparatu łączeniowego, zastosowanie do wyłącznika ochronnego silnika PKZM0, PKE i starter bezpośredni/ MSC-D(E)(A) ze stycznikiem mocy DILM17 do DILM32, znamionowy prąd pracy: 32A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 295 g |
| ETIM class: | Busbar adapter |
| Busbar distance: | 60 mm |
| Mounting rail armament: | 2 mounting rails |
| Max. busbar thickness: | 10 mm |
| Width of the adapter: | 45 mm |
| Rail width: | 35 mm |
| Type of electric connection: | 3 conductors AWG 10 |
| Min. busbar thickness: | 5 mm |
| Rated current In: | 32 A |
