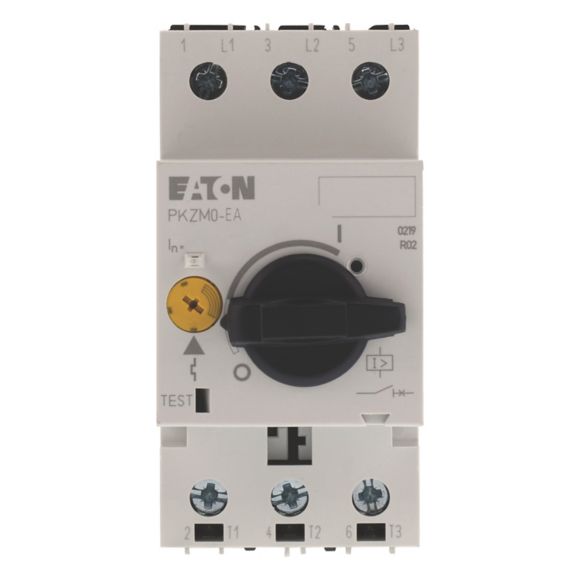

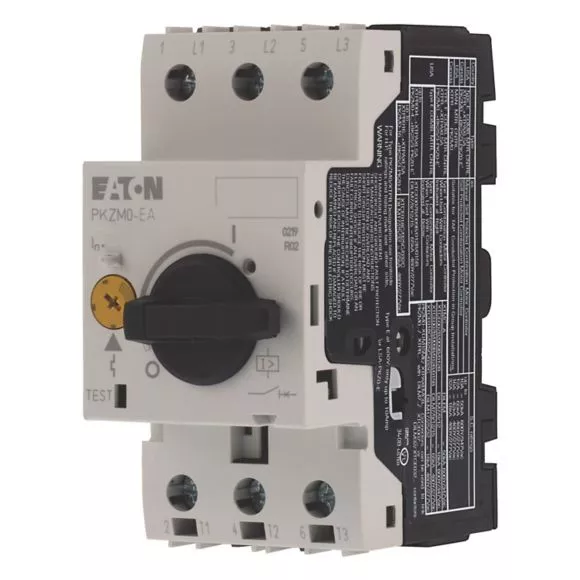

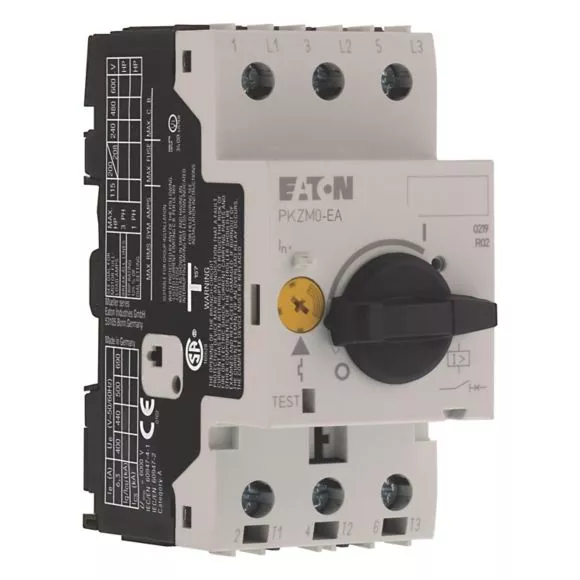

PKZM0-0,63-EA Wyłącznik silnikowy PKZM0, Ir=0,4-0,63A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 189897 |
| GTIN(EAN) | 4015081878932 |
| Price unit | piece |
| Catalog price | 297,41 zł (241,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 246 g |
| Country of origin | Niemcy |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 0.4 - 0.63 A |
| Adjustment range undelayed short-circuit release: | 9.8 - 9.8 A |
| With thermal overload protection: | no |
| Phase failure sensitive: | yes |
| Switch off technique: | Thermomagnetic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 0.63 A |
| Rated operation power at AC-3, 230 V: | 0.09 kW |
| Rated operation power at AC-3, 400 V: | 0.12 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Turn button |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
| Degree of protection (IP): | IP20 |
| Height: | 93 mm |
| Width: | 45 mm |
| Depth: | 76 mm |
| Power loss: | 5.16 W |
Buy online
Shop
Available
Buy
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-12-05 19:17:50 |
| Files to download: | |
| External links: |
