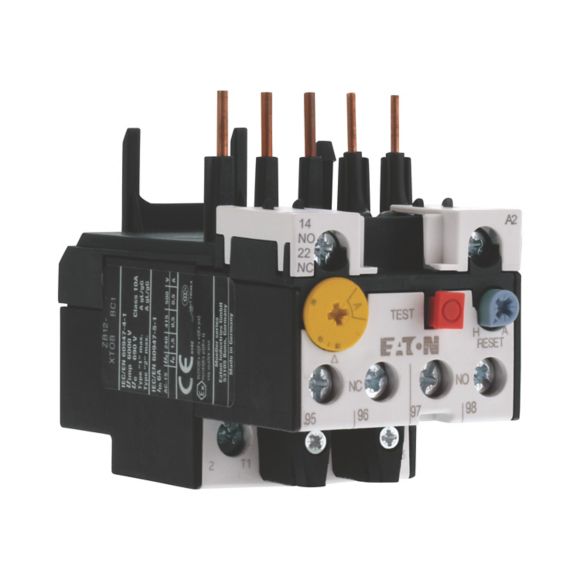

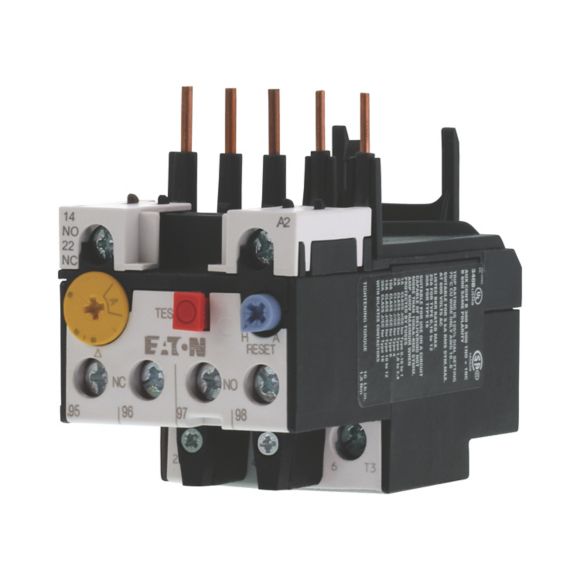

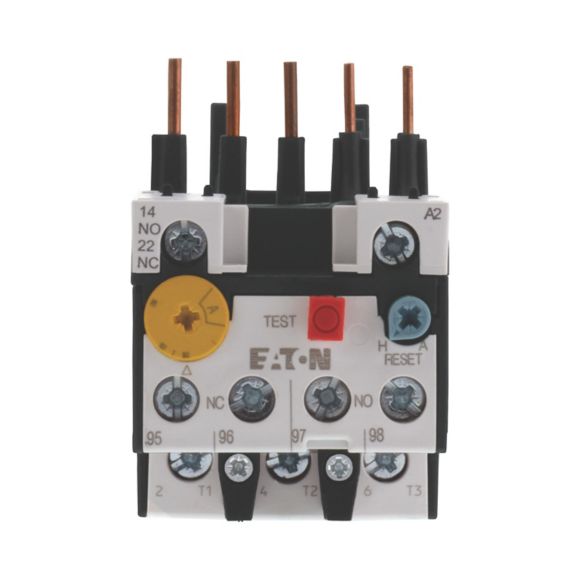

ZB12-0,24 Przekaźnik przeciążeniowy 12A 0,16.0,24A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 278432 |
| GTIN(EAN) | 4015082784324 |
| Price unit | piece |
| Catalog price | 335,18 zł (272,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ochronny przekaźnik silnikowy do bezpośredniego montażu w styczniku o rozmiarze od DILM7 do DILM15, wrażliwość na brak fazy zgodnie z IEC/EN 60947, VDE0660 T.102, nadaje się do ochrony silników EEx, klasa wyzwolenia 10A, mocowanie na zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem palcem zgodne z EN50274 przy pionowym uruchamianiu od przodu, urządzenia na wszystkich rynkach, dopuszczenie do użytku na statkach
Additional features:
| Information | Value |
|---|---|
| Net weight: | 141 g |
| ETIM class: | Thermal overload relay |
| Adjustable current range: | 0.16 - 0.24 A |
| Max. rated operation voltage Ue: | 690 V |
| Mounting method: | Direct attachment |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Release class: | CLASS 10 A |
| Reset function input: | no |
| Reset function automatic: | yes |
| Reset function push-button: | yes |
