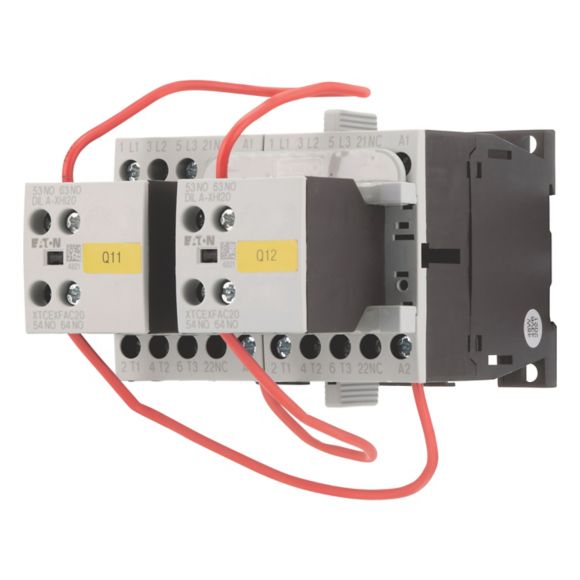

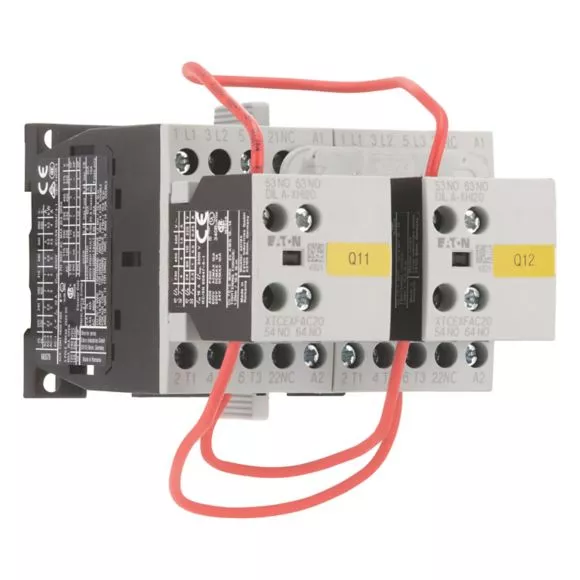

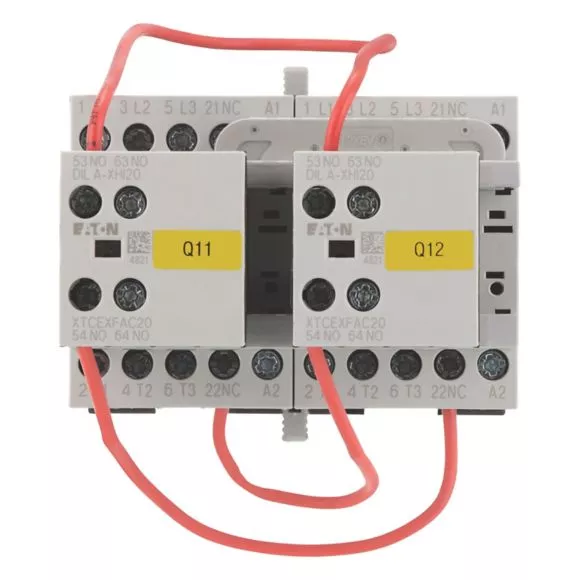

DIULM9/21(230V50HZ,240V60HZ) Zestaw nawrotny 4kW [AC-3] 400V
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 278086 |
GTIN(EAN) | 4015082780869 |
Price unit | piece |
Catalog price | 745,13 zł (605,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kombinacja styczników nawrotnych z kompletnym okablowaniem
Additional features:
Information | Value |
---|---|
Net weight: | 604 g |
Country of origin | Rumunia |
ETIM class: | Combination of contactors |
Function: | Reversing contactor |
Rated control supply voltage AC 50 Hz: | 230 - 230 V |
Rated control supply voltage AC 60 Hz: | 240 - 240 V |
Rated control supply voltage DC: | 0 - 0 V |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-1, 400 V: | 9 A |
Rated operation current Ie at AC-3, 400 V: | 9 A |
Rated operation power at AC-3, 400 V: | 4 kW |
Rated operation power NEMA: | 3.7 kW |
Number of normally closed contacts as main contact: | 0 |
Number of normally open contacts as main contact: | 6 |
Type of electrical connection of main circuit: | Screw connection |
Degree of protection (IP): | IP20 |
Rail mounting possible: | no |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Degree of protection (NEMA): | Other |
Voltage type (operating voltage): | AC |
Operating voltage AC 50 Hz: | 24 - 690 V |
Operating voltage AC 60 Hz: | 24 - 690 V |
Operating voltage DC: | 0 - 0 V |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 2 |
Number of auxiliary contacts as change-over contact: | 0 |
Width: | 90 mm |
Height: | 68 mm |
Depth: | 117 mm |
