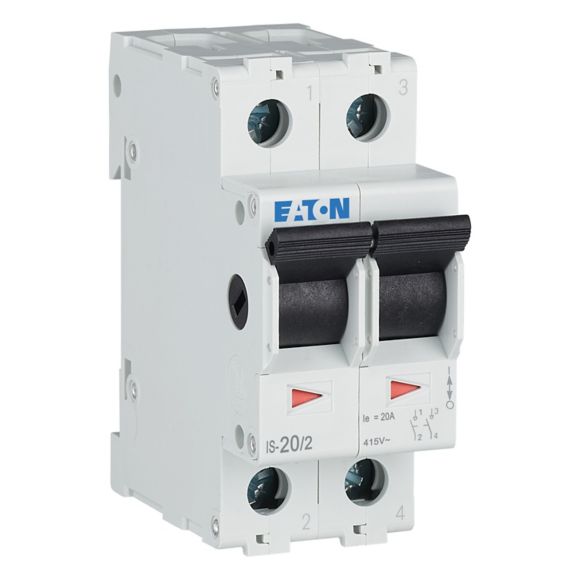

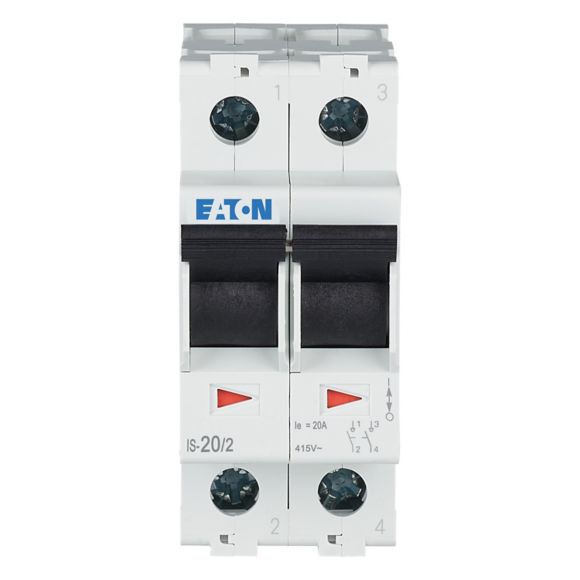

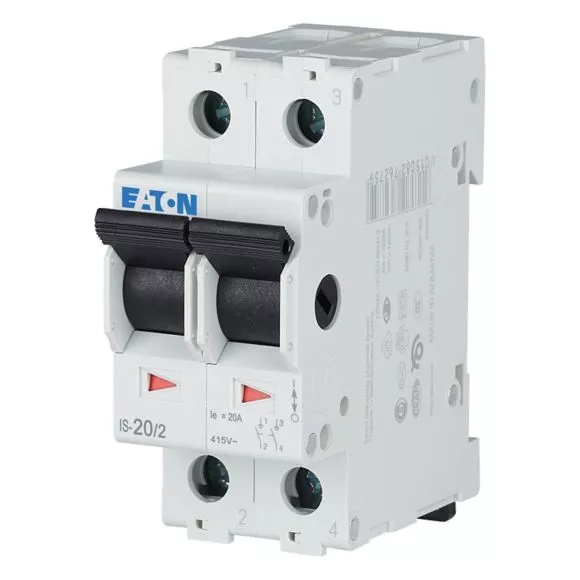

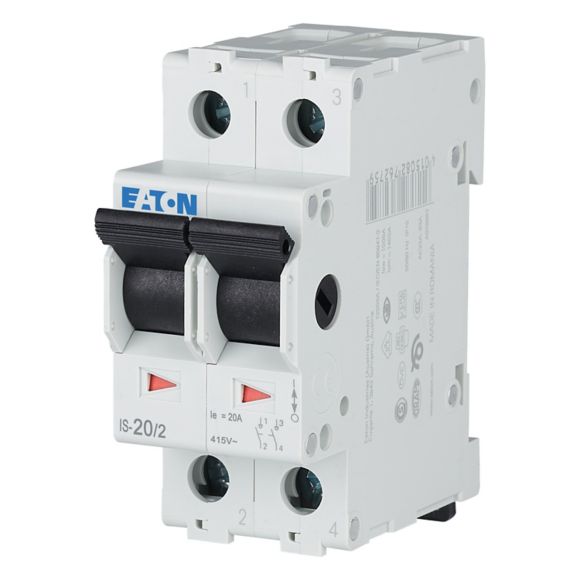

IS-20/2 Rozłącznik główny izolacyjny
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 276259 |
| GTIN(EAN) | 4015082762599 |
| Price unit | piece |
| Catalog price | 145,02 zł (117,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Odłącznik mocy z funkcją odłączania, wersja zgodna z IEC/EN 60947-3, wysoka wytrzymałość styków na zużycie, włączanie skokowe, kolor pokrętła: czarny, przekrój zacisku 50mm², zgodność z oszynowaniem z urządzeniami ochronnymi Xpole przy zastosowaniu zacisku szczękowego ze standardowym oszynowaniem widełkowym
Additional features:
| Information | Value |
|---|---|
| Net weight: | 201 g |
| ETIM class: | Main switch for distribution board |
| Switching function: | Other |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as normally closed contact: | 2 |
| Number of contacts as change-over contact: | 0 |
| Number of poles: | 2 |
| Rated current: | 20 A |
| Rated voltage: | 415 V |
| Min. rated voltage: | 240 V |
| Rated switching capacity: | 12.5 kA |
| Short-circuit breaking capacity (Icw): | 2 kA |
| Voltage type: | AC |
| With signal lamp: | no |
| Colour calotte: | Other |
| Lamp type: | Other |
| Lamp socket: | Other |
| Max. lamp power: | 0 W |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69.5 mm |
| Degree of protection (IP): | IP40 |
| Imprint/indication: | Symbol "arrows" |
| Forced segregation according to DIN VDE 0113: | no |
