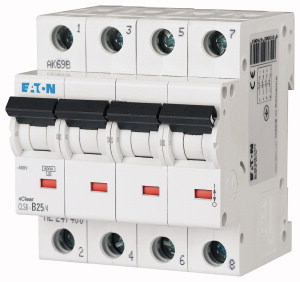

CLS6-C40/4-DP Wyłączniki nadprądowy 4-bieg

Information	Value
Supplier	EATON Electric Sp. z o.o. (MOELLER)
Symbol	270526
GTIN(EAN)	4015082705268
Price unit	piece
Product withdrawn	This product is not produced any more. It might still be available if some wholesaler has it in it's stock
Sale price	from 92,71 zł / szt. (75,37 zł + 23 % VAT)

The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.

Additional features:

Information	Value
ETIM class:	Miniature circuit breaker (MCB)
Release characteristic:	C
Number of poles (total):	4
Number of protected poles:	4
Rated current:	40 A
Rated voltage:	400 V
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V:	6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V:	6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V:	0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V:	0 kA
Voltage type:	AC
Frequency:	50 - 60 Hz
Current limiting class:	3
Concurrently switching neutral conductor:	no
Over voltage category:	3
Pollution degree:	2
Additional equipment possible:	yes
Width in number of modular spacings:	4
Built-in depth:	70.5 mm
Degree of protection (IP):	IP20
Ambient temperature during operating:	-25 - 55 °C
Connectable conductor cross section multi-wired:	1 - 25 mm²
Connectable conductor cross section solid-core:	1 - 25 mm²
