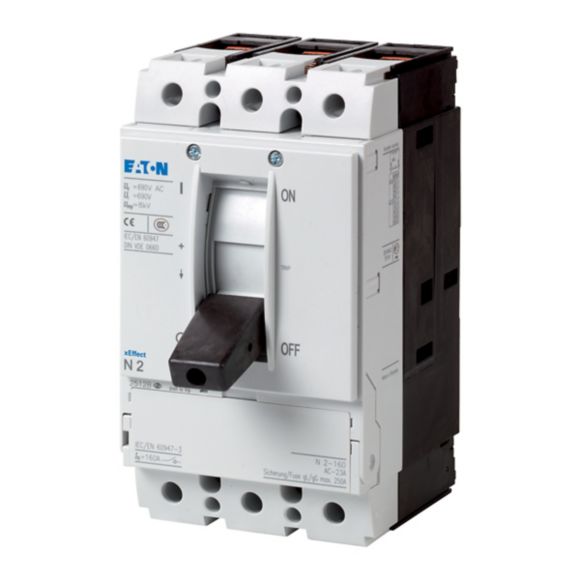

PN2-250 Rozłącznik mocy 3-bieg. 250A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 266007 |
| GTIN(EAN) | 4015082660079 |
| Price unit | piece |
| Catalog price | 3 603,29 zł (2 929,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Switch-disconnector PN..-.. comply with the isolation properties even for earthed IT networks. Accessories, such as bridge kits, connection terminals and door coupling rotary handles enable individual installation in the most varied of distribution systems. PN part no. are not suitable for remote functions. Notes: main switch characteristics including positive drive according to IEC/EN 60204 und VDE 0113. Isolating characteristics according to IEC/EN 60947-3 and VDE 0660. busbar tag shroud according to VDE 0160 Part 100.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,891 kg |
| Country of origin | Rumunia |
| ETIM class: | Switch disconnector (low voltage) |
| Version as main switch: | yes |
| Version as maintenance-/service switch: | yes |
| Version as safety switch: | no |
| Version as emergency stop installation: | yes |
| Version as reversing switch: | no |
| Number of switches: | 1 |
| Max. rated operation voltage Ue AC: | 690 V |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 250 A |
| Rated permanent current at AC-23, 400 V: | 0 A |
| Rated permanent current at AC-21, 400 V: | 0 A |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Rated short-time withstand current lcw: | 3.5 kA |
| Rated operation power at AC-23, 400 V: | 132 kW |
| Switching power at 400 V: | 0 kW |
| Conditioned rated short-circuit current Iq: | 0 kA |
| Number of poles: | 3 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Voltage release optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | yes |
| Suitable for intermediate mounting: | yes |
| Colour control element: | Black |
| Type of control element: | Rocker lever |
| Interlockable: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Degree of protection (IP), front side: | IP20 |
| Degree of protection (NEMA): | Other |
| With pre-assembled cabling: | no |
| Width: | 105 mm |
| Height: | 185 mm |
| Depth: | 142 mm |
