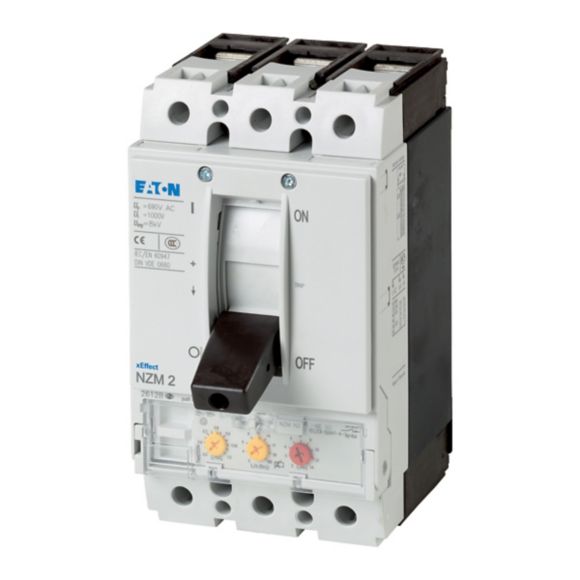

NZMN2-ME220 Wyłącznik mocy 3-bieg. 220A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 265780 |
| GTIN(EAN) | 4015082657802 |
| Price unit | piece |
| Catalog price | 10 097,64 zł (8 209,46 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki serii NZM..-ME swoimi zaledwie czterema kompaktowymi wielkościami sprawdzają się we wszystkich zastosowaniach oraz nadają się na rynek IEC. Montaż jest zawsze elastyczny za pomocą modułowych grup funkcyjnych. Z elektronicznym wyzwalaczem do ochrony silnika z wrażliwością na brak fazy. Wskazówki: IEC/EN 60947-4-1, IEC/EN 60947-2, pomiar efektywnej wartości i pamięci termicznej, regulowane ustawianie stopnia zwłoczności tr: 2-20s przy 6xIr oraz nieskończoność (bez wyzwalacza przeciążeniowego)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,478 kg |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 110 - 220 A |
| Adjustment range undelayed short-circuit release: | 220 - 3080 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | yes |
| Switch off technique: | Electronic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 220 A |
| Rated operation power at AC-3, 230 V: | 55 kW |
| Rated operation power at AC-3, 400 V: | 110 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 35 kA |
| Degree of protection (IP): | IP20 |
| Height: | 184 mm |
| Width: | 105 mm |
| Depth: | 149 mm |
