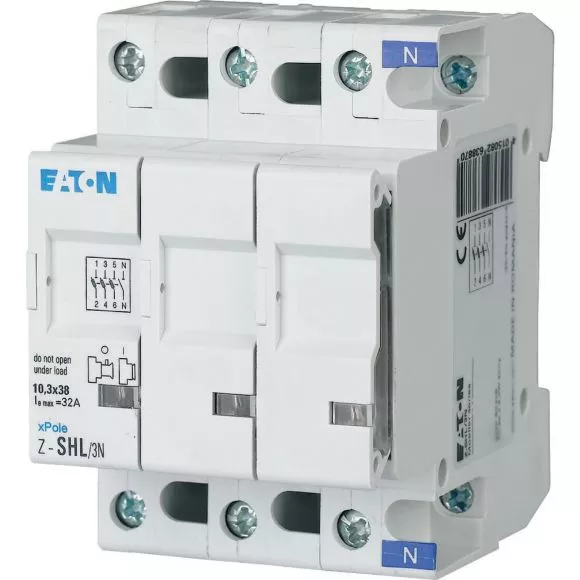

Z-SHL/3N Podstawa bezpiecznikowa do wkładek cylindrycznych
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 263887 |
| GTIN(EAN) | 4015082638870 |
| Price unit | piece |
| Catalog price | 315,37 zł (256,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Fuse disconnector for industrial applications, with visual trip indication, for cylindrical fuse inserts, sealable, supplied without fuses, type conforms to IEC/EN 60947-3
Additional features:
| Information | Value |
|---|---|
| Net weight: | 245 g |
| ETIM class: | Fuse switch disconnector |
| Version as main switch: | no |
| Version as safety switch: | no |
| Max. rated operation voltage Ue AC: | 400 V |
| Rated permanent current Iu: | 32 A |
| Rated operation power at AC-23, 400 V: | 0 kW |
| Conditioned rated short-circuit current Iq: | 10 kA |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for fuses: | Shape C1-C3 |
| Number of poles: | 4 |
| With error protection: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Cable entry: | Other |
| Equipped with connectors: | no |
| Suitable for floor mounting: | no |
| Suitable for front mounting: | no |
| Suitable for busbar mounting: | no |
| Type of control element: | Other |
| Position control element: | Front side |
| Motor drive optional: | no |
| Motor drive integrated: | no |
| Version as emergency stop installation: | no |
| Degree of protection (IP), front side: | IP20 |
