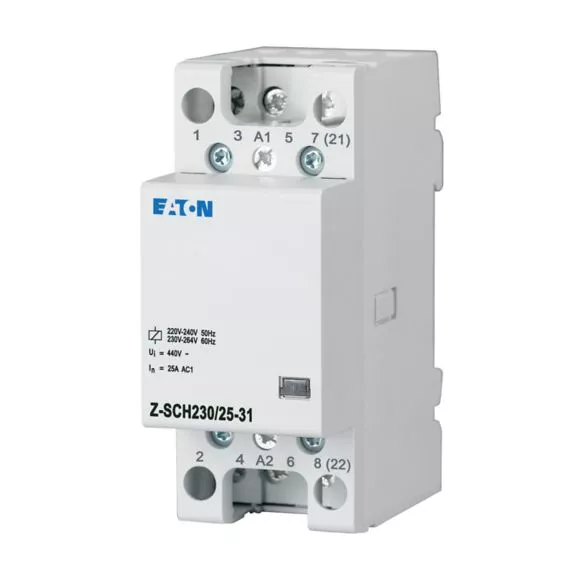

Z-SCH230/25-31 Stycznik instalacyjny
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 248846 |
GTIN(EAN) | 4015082488468 |
Price unit | piece |
Catalog price | 447,97 zł (364,20 zł + 23% VAT) |
Sale price | from 99,13 zł / szt. (80,59 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik instalacyjny, pomiarowe napięcie sterownicze 230V AC, znamionowy prąd pracy przełącznika AC1 25A, funkcja: 3 zestyków zwiernych + 1 zestyków rozwiernych, informacje zgodne z IEC 61095, EN 61095, VDE 0660, IEC 60947-4-1, EN 60947-4-1, VDE, wymiary montażowe zatyczki 45mm, szerokość montażowa 2JC (35mm), wyłącznik naprądowy
Additional features:
Information | Value |
---|---|
Net weight: | 220 g |
ETIM class: | Installation contactor for distribution board |
Rated operating voltage: | 440 - 440 V |
Rated operation current: | 25 A |
Rated excitation voltage: | 195.5 - 253 V |
Voltage type (operating voltage): | AC |
Voltage type (excitation voltage): | AC |
Number of contacts as normally open contact: | 3 |
Number of contacts as normally closed contact: | 1 |
Max. incandescent lamp load: | 3000 W |
Max. load fluorescent lamp: | 1160 VA |
Max. load fluorescent lamp (Duo circuit): | 2552 VA |
Max. load fluorescent lamp (parallel compensated): | 1044 VA |
Slider for hand switch: | no |
Width in number of modular spacings: | 2 |
Built-in depth: | 60 mm |
Additional equipment possible: | yes |
With day/night function: | no |
Hum-free: | no |
Degree of protection (IP): | IP40 |
