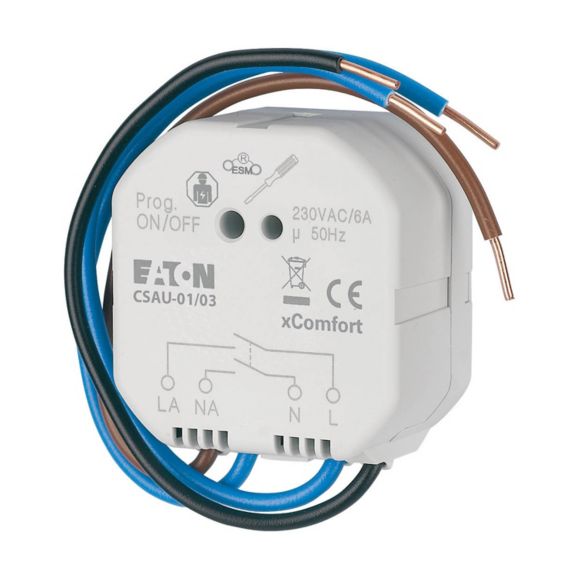

CSAU-01/03 Odbiornik sterujący (rozłącza L i N)
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 240695 |
| GTIN(EAN) | 4015082406950 |
| Price unit | piece |
| Catalog price | 1 605,15 zł (1 305,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Odbiornik sterujący zz wszystkimi biegunamiz odbiera dane z dowolnych urządzeń i steruje nimi, np. światłem, wentylacją, ogrzewaniem, instalacjami alarmowymi itp. Zasilanie pochodzi z sieci. Załączana jest faza i przewód zerowy. Urządzenie montuje się w puszce przełącznikowej, odgałęźnej lub instalacyjnej lub bezpośrednio w oprawie lampy.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 84 g |
| Country of origin | Czechy |
| ETIM class: | Switch actuator for bus system |
| Bus system KNX: | no |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system radio frequent: | yes |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | xComfort |
| Radio frequent bidirectional: | yes |
| Mounting method: | Flush-mounted |
| Width in number of modular spacings: | 3 |
| Local operation/hand operation: | no |
| With LED indication: | no |
| Number of digital inputs: | 0 |
| Max. switching power: | 1380 W |
| Max. switching power LED: | 0 W |
| Output power: | 1380 W |
| Suitable for C-load: | no |
| Max. number of switching contacts: | 2 |
| Max. switching current: | 6 A |
| Rated current: | 8 A |
| Rated operating voltage: | 230 - 230 V |
| Different phases connectable: | no |
| With bus connection: | no |
| Bus module detachable: | yes |
| Min. depth of built-in installation box: | 26 mm |
| Modular expandability: | no |
| Degree of protection (IP): | IP20 |
| Power consumption: | 0.6 W |
