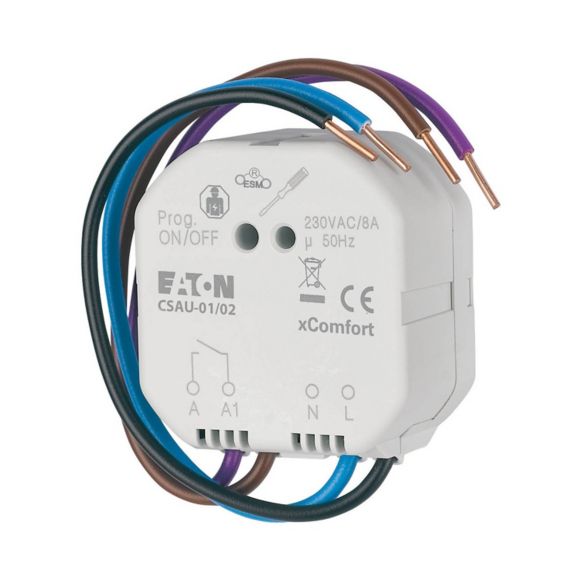

CSAU-01/02 Odbiornik sterujący (bezpotencjałowy)
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 240694 |
GTIN(EAN) | 4015082406943 |
Price unit | piece |
Catalog price | 1 586,70 zł (1 290,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Odbiornik sterujący zbezpotencjałowyz odbiera dane z dowolnych urządzeń i steruje nimi, np. światłem, wentylacją, ogrzewaniem, instalacjami alarmowymi itp. W sieci mogą być różne napięcia. Urządzenie montuje się w puszce przełącznikowej, odgałęźnej lub instalacyjnej lub bezpośrednio w oprawie lampy.
Additional features:
Information | Value |
---|---|
Net weight: | 82 g |
ETIM class: | Switch actuator for bus system |
Bus system KNX: | no |
Bus system KNX-RF (Radio Frequent): | no |
Bus system radio frequent: | yes |
Bus system LON: | no |
Bus system Powernet: | no |
Other bus systems: | xComfort |
Radio frequent bidirectional: | yes |
Mounting method: | Flush-mounted |
Width in number of modular spacings: | 3 |
Local operation/hand operation: | no |
With LED indication: | no |
Number of digital inputs: | 0 |
Max. switching power: | 1840 W |
Max. switching power LED: | 0 W |
Output power: | 0 W |
Suitable for C-load: | no |
Max. number of switching contacts: | 1 |
Max. switching current: | 8 A |
Rated current: | 8 A |
Rated operating voltage: | 230 - 230 V |
Different phases connectable: | no |
With bus connection: | no |
Bus module detachable: | yes |
Min. depth of built-in installation box: | 26 mm |
Modular expandability: | no |
Degree of protection (IP): | IP20 |
