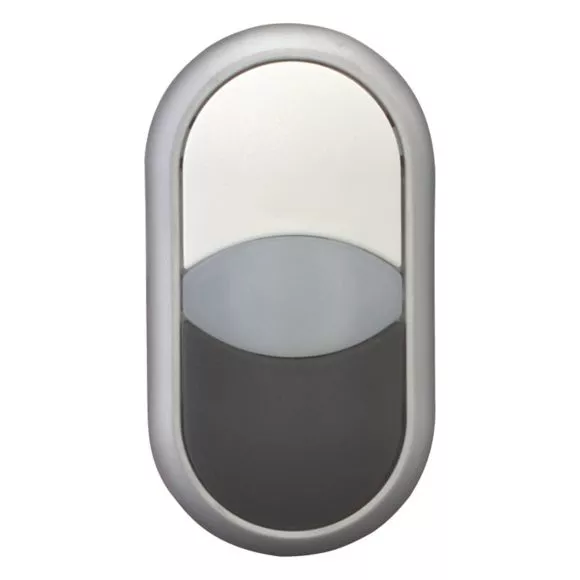

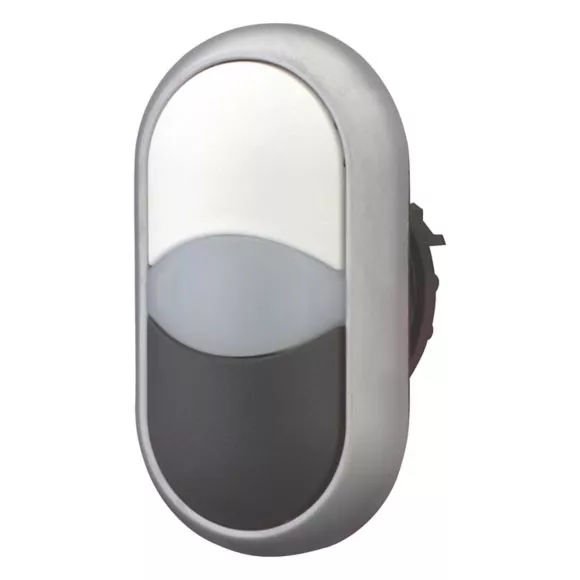

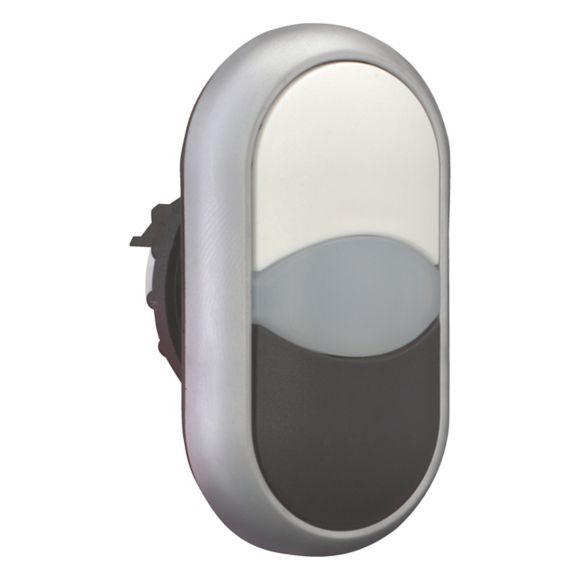

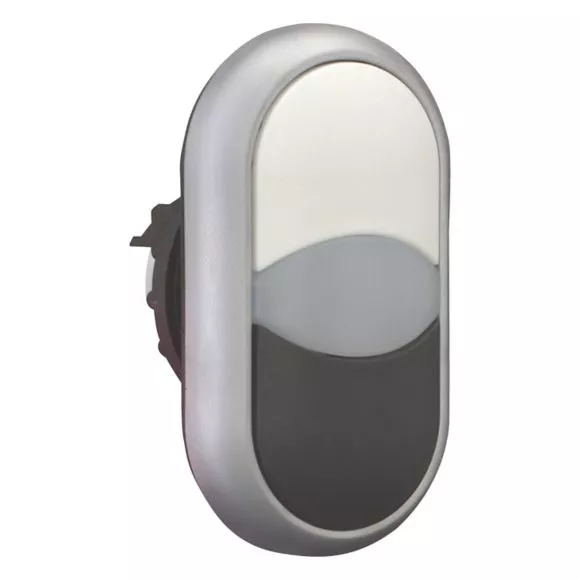

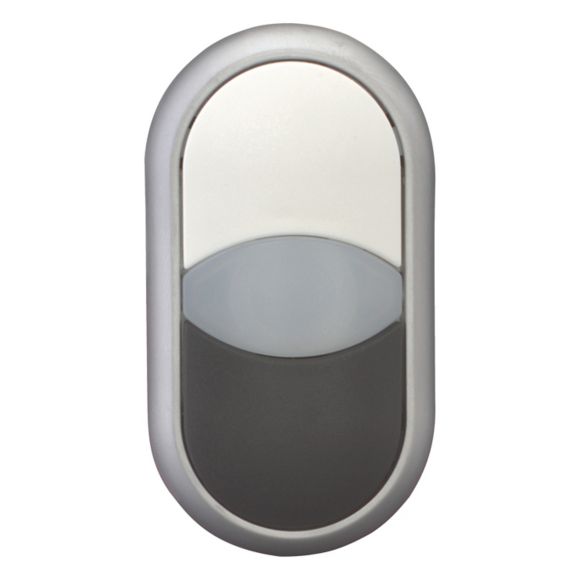

M22-DDL-WS Napęd przycisków podwójnych z samopowrot
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 216704 |
GTIN(EAN) | 4015082167042 |
Price unit | piece |
Catalog price | 101,84 zł (82,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przycisk podwójny, Zacisk śrubowy: RMQ-Titan, Urządzenie pojedyncze, Projekt: Elementy uruchamiające i lampki sygnalizacyjne niezlicowane, z samopowrotem, Opis: Biała soczewka, wkładka przycisku: biały, czarny, Wkładka przycisku Pusta, Stopień ochrony: IP66, Pierścień czołowy: tytan, Podłączanie do SmartWire-DT: tak, z przyłączami SWD-RMQ, Wymiary przedniej części: 29,7 x 54,7, Normy: IEC/EN 60947, VDE 0660
Additional features:
Information | Value |
---|---|
Net weight: | 15 g |
Country of origin | Niemcy |
ETIM class: | Front element for push button |
Colour button: | Black/white |
Number of command positions: | 2 |
Construction type lens: | Oval |
Hole diameter: | 22,5 mm |
Width opening: | 0 mm |
Height opening: | 0 mm |
Type of button: | Flat |
Suitable for illumination: | yes |
With protective cover: | no |
Labelled: | no |
Switching function latching: | no |
Spring-return: | yes |
With front ring: | yes |
Material front ring: | Plastic |
Colour front ring: | Titanium |
Degree of protection (IP), front side: | IP66 |
Degree of protection (NEMA), front side: | 4X |
