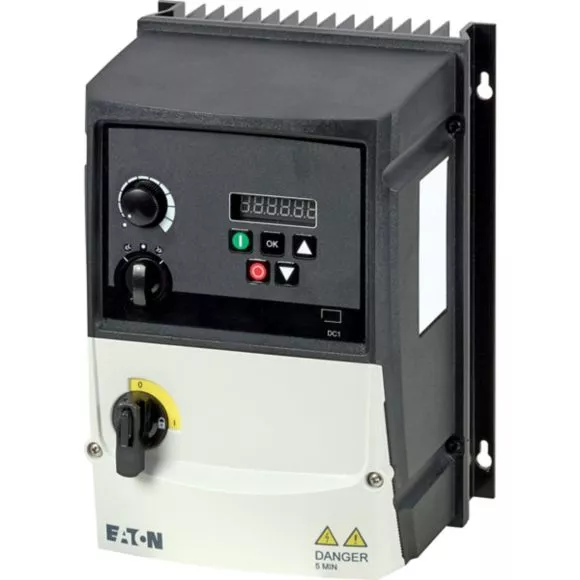

DC1-345D8FB-A6SOE1 Przemiennik DC1+, IP66 (outdoor), 2,2kW, 3-faz./3-faz. 400V, elementy sterujące
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 199436 |
| GTIN(EAN) | 4015081978250 |
| Price unit | piece |
| Catalog price | 4 424,31 zł (3 597,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przemienniki częstotliwości, Odniesienie grupy części (np. DIL): DC1, Znamionowe napięcie robocze: Ue = 400 V AC, 3-fazowe, 480 V AC, 3-fazowe, Napięcie na wyjściu z Ve: U2 = 400 V AC, 3-fazowe, 480 V AC, 3-fazowe, Napięcie sieciowe (50/60Hz): ULN = od 380 (-10%) do 480 (+10%) V, Znamionowy prąd roboczy przy przeciążeniu 150%: Ie = 5,8 A, Uwaga: Znamionowy prąd roboczy przy częstotliwości pracy wynoszącej 6 kHz i temperaturze otaczającego powietrza wynoszącej +40°C, Uwaga: Cykl przeciążenia dla 60 s co 600 s, Przypisana wartość znamionowa silnika Uwaga: Do normalnych, wewnętrznie i zewnętrznie wentylowanych czterobiegunowych, trójfazowych silników asynchronicznych o prędkości obrotowej 1500 obr./min przy 50 Hz i 1800 obr./min przy 60 Hz
Additional features:
| Information | Value |
|---|---|
| Net weight: | 3,5 kg |
| Country of origin | Wielka Brytania |
| ETIM class: | Frequency converter =< 1 kV |
| Mains frequency: | 50/60 Hz |
| Number of phases input: | 3 |
| Number of phases output: | 3 |
| Max. output frequency: | 500 Hz |
| Max. output voltage: | 500 V |
| Nominal output current I2N: | 5,8 A |
| Max. output at quadratic load at rated output voltage: | 2,2 kW |
| Max. output at linear load at rated output voltage: | 2,2 kW |
| Relative symmetric net frequency tolerance: | 10 % |
| Relative symmetric net voltage tolerance: | 10 % |
| Number of analogue outputs: | 1 |
| Number of analogue inputs: | 2 |
| Number of digital outputs: | 1 |
| Number of digital inputs: | 4 |
| With control element: | yes |
| Application in industrial area permitted: | yes |
| Application in domestic- and commercial area permitted: | yes |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | yes |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for BACnet: | no |
| Supporting protocol for other bus systems: | yes |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces other: | 0 |
| With optical interface: | no |
| With PC connection: | yes |
| Integrated breaking resistance: | yes |
| 4-quadrant operation possible: | yes |
| Type of converter: | U converter |
| Degree of protection (IP): | IP66 |
| Degree of protection (NEMA): | 4X |
| Height: | 257 mm |
| Width: | 188 mm |
| Depth: | 182 mm |
| Power consumption: | 101,2 W |
