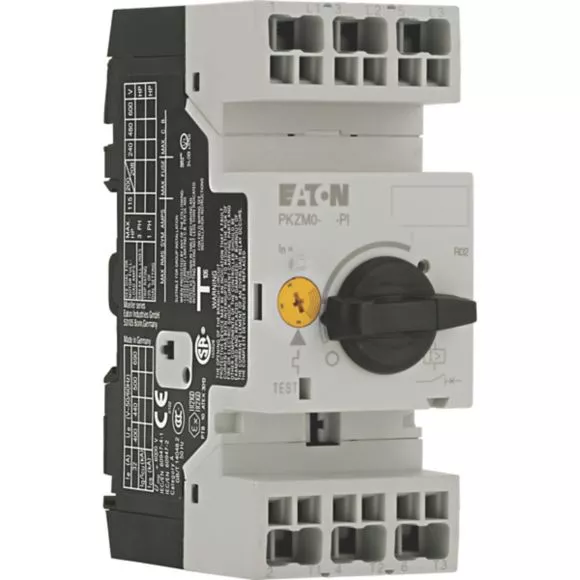

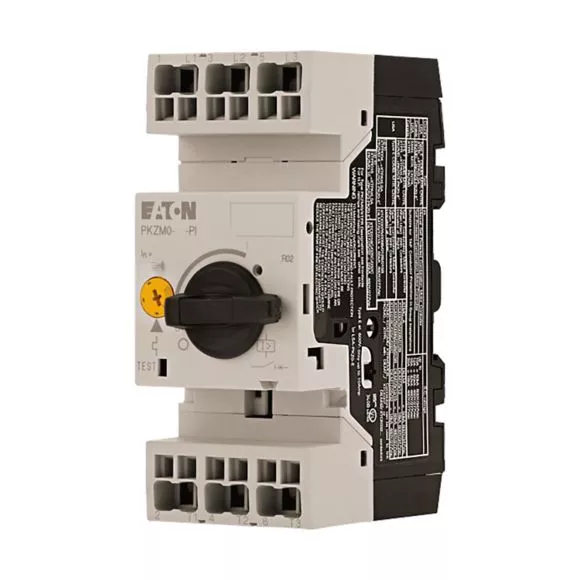

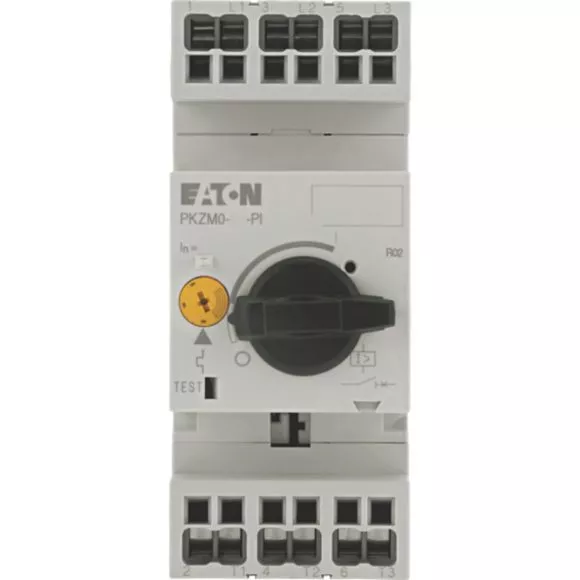

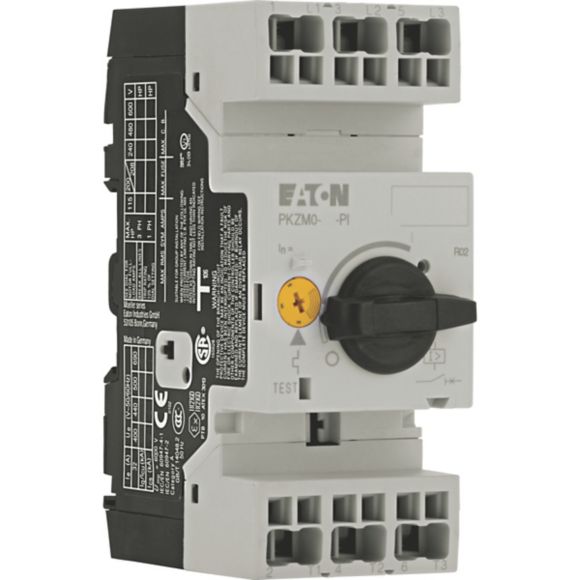

PKZM0-16-PI Wył. silnikowy PKZM0 Push-In 10..16A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 199159 |
| GTIN(EAN) | 4015081972432 |
| Price unit | piece |
| Catalog price | 597,04 zł (485,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 345 g |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 16 - 16 A |
| Adjustment range undelayed short-circuit release: | 248 - 248 A |
| With thermal overload protection: | no |
| Phase failure sensitive: | yes |
| Switch off technique: | Thermomagnetic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 16 A |
| Rated operation power at AC-3, 230 V: | 4 kW |
| Rated operation power at AC-3, 400 V: | 7.5 kW |
| Type of electrical connection of main circuit: | Spring clamp connection |
| Type of control element: | Turn button |
| Device construction: | Built-in device fixed built-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Degree of protection (IP): | IP20 |
| Height: | 109 mm |
| Width: | 45 mm |
| Depth: | 75 mm |
