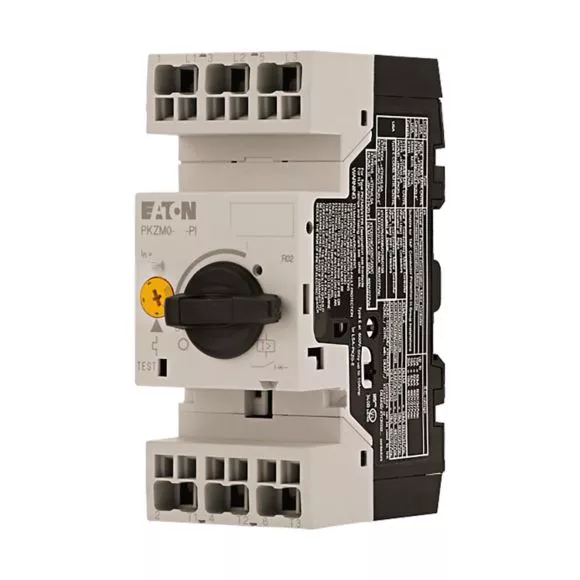

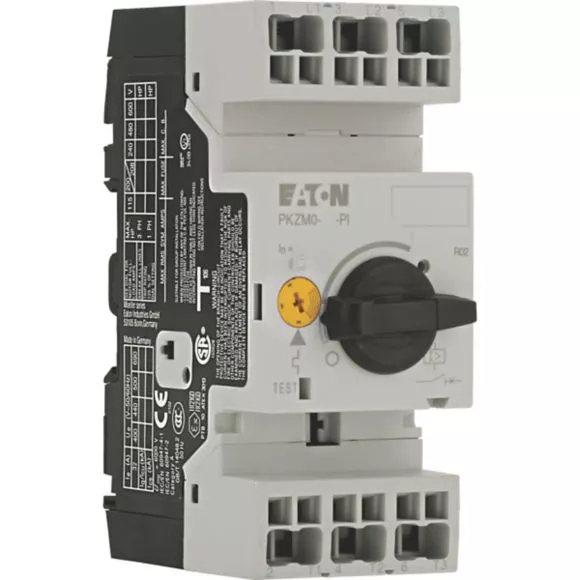

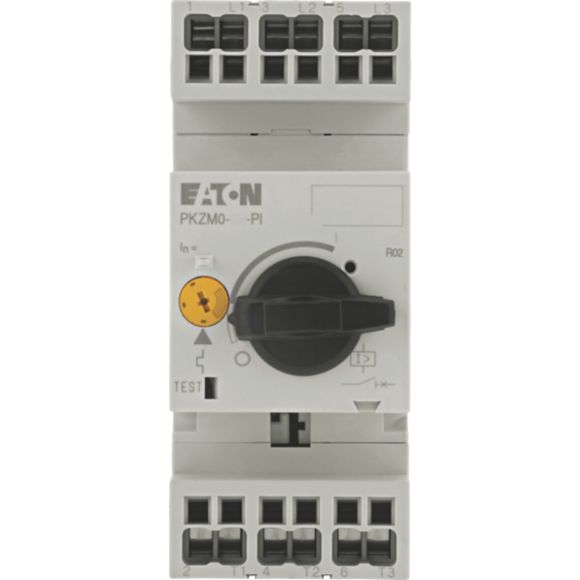

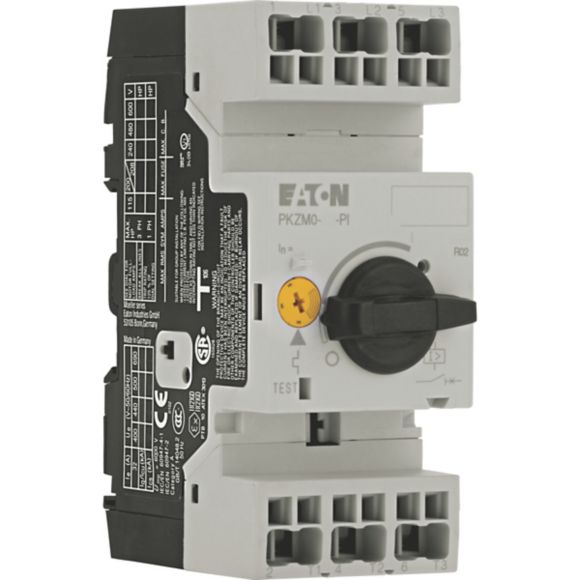

PKZM0-0,4-PI Wył. silnikowy PKZM0 Push-In 0,25..0,4A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 199150 |
GTIN(EAN) | 4015081972340 |
Price unit | piece |
Catalog price | 478,84 zł (389,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 296 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 0.4 - 0.4 A |
Adjustment range undelayed short-circuit release: | 6.2 - 6.2 A |
With thermal overload protection: | no |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 0.4 A |
Rated operation power at AC-3, 230 V: | 0.06 kW |
Rated operation power at AC-3, 400 V: | 0.09 kW |
Type of electrical connection of main circuit: | Spring clamp connection |
Type of control element: | Turn button |
Device construction: | Built-in device fixed built-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 150 kA |
Degree of protection (IP): | IP20 |
Height: | 109 mm |
Width: | 45 mm |
Depth: | 75 mm |
