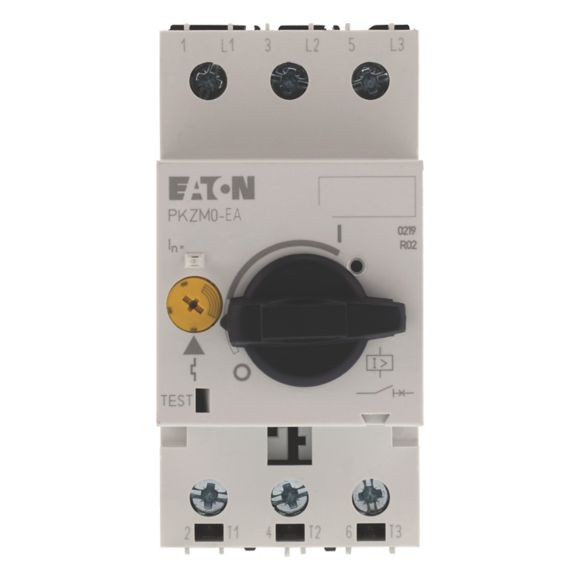

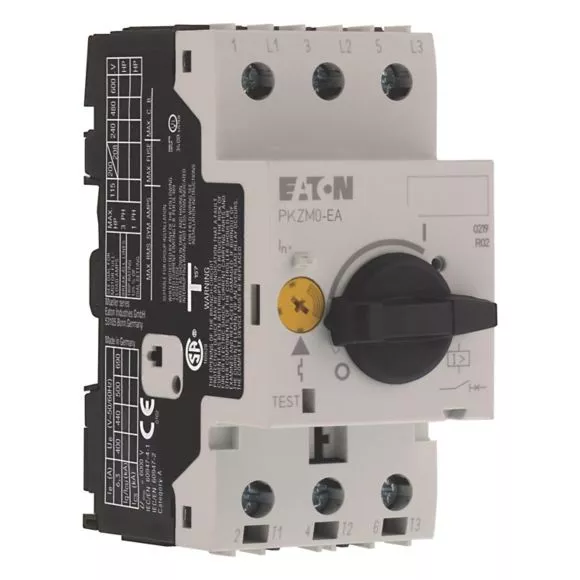

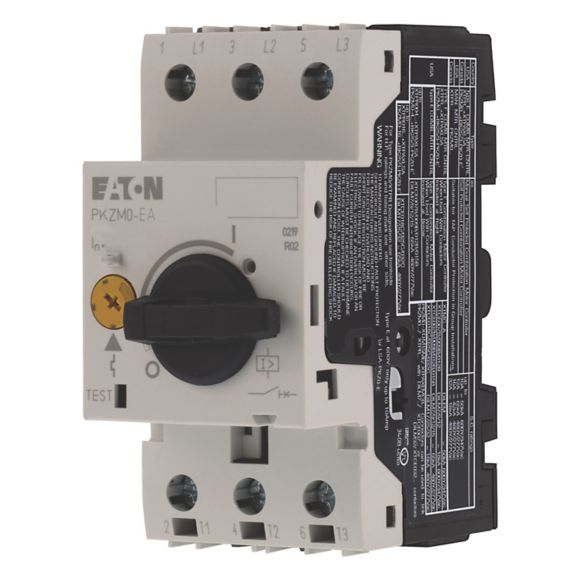

PKZM0-20-EA Wyłącznik silnikowy PKZM0, Ir=16-20A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 189906 |
GTIN(EAN) | 4015081879021 |
Price unit | piece |
Catalog price | 424,97 zł (345,50 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 296 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 16 - 20 A |
Adjustment range undelayed short-circuit release: | 310 - 310 A |
With thermal overload protection: | no |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 20 A |
Rated operation power at AC-3, 230 V: | 5.5 kW |
Rated operation power at AC-3, 400 V: | 9 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Device construction: | Built-in device fixed built-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
Degree of protection (IP): | IP20 |
Height: | 93 mm |
Width: | 45 mm |
Depth: | 76 mm |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
ELEKTRO-HURT o/Gniezno
Gniezno, Słoneczna 40a
Gniezno, Słoneczna 40a
Distance:
2 sztuki
185,39 zł/szt.
ELEKTRO-HURT o/Opole
Opole, Zielonogórska 6
Opole, Zielonogórska 6
Distance:
2 sztuki
185,39 zł/szt.
ELEKTRO-HURT o/Komorniki
Komorniki, Kolejowa 187/189
Komorniki, Kolejowa 187/189
Distance:
1 sztuka
185,39 zł/szt.
ELEKTRO-HURT o/Leszno
Leszno, Witolda 3
Leszno, Witolda 3
Distance:
2 sztuki
185,39 zł/szt.
ELEKTRO-HURT o/Sieradz
Sieradz, Polskiej Organizacji Wojskowej 60
Sieradz, Polskiej Organizacji Wojskowej 60
Distance:
3 sztuki
185,39 zł/szt.
ELEKTRO-HURT o/Łowicz
Łowicz, Warszawska 34/36
Łowicz, Warszawska 34/36
Distance:
2 sztuki
185,39 zł/szt.
ELEKTRO-HURT o/Częstochowa
Częstochowa, Piotrkowska 16
Częstochowa, Piotrkowska 16
Distance:
1 sztuka
185,39 zł/szt.
ELEKTRO-HURT o/Inowrocław
Inowrocław, Marcinkowskiego 111
Inowrocław, Marcinkowskiego 111
Distance:
2 sztuki
185,39 zł/szt.
Elektret O/Jarosław
Jarosław, Pruchnicka 5
Jarosław, Pruchnicka 5
Distance:
3 sztuki
186,98 zł/szt.
ELEKTRO-HURT Gniezno/B2C
Gniezno, Słoneczna 40a
Gniezno, Słoneczna 40a
Distance:
2 sztuki
185,39 zł/szt.
Buy online
Shop
Available
Buy
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-15 00:04:24 |
Files to download: |
|
External links: |
