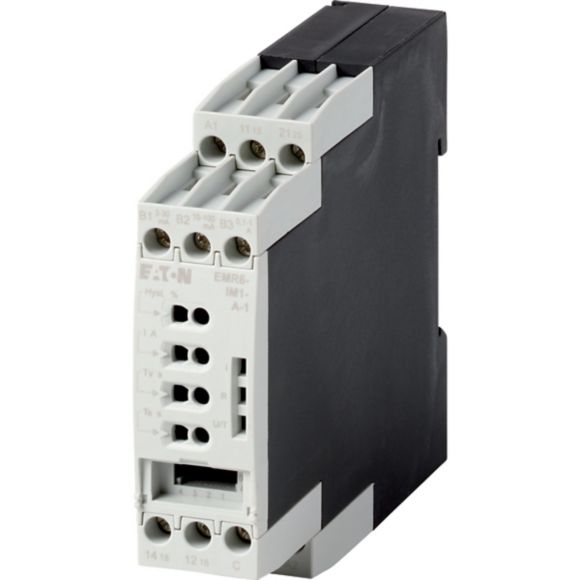

EMR6-IM1-A-1 Przekaźnik monitorujący prąd, 0.003 - 1 A, 24 - 240 V AC/DC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184780 |
| GTIN(EAN) | 4015081788163 |
| Price unit | piece |
| Catalog price | 2 162,34 zł (1 758,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 153 g |
| Country of origin | Niemcy |
| ETIM class: | Current monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Single-phase under current possible: | yes |
| Three-phase under current possible: | no |
| Single-phase overcurrent possible: | yes |
| Three-phase overcurrent possible: | no |
| Single-phase hysteresis possible: | no |
| Three-phase hysteresis possible: | no |
| Contains function DC-voltage under current: | yes |
| Contains function DC-voltage overcurrent: | yes |
| Function DC-current hysteresis: | no |
| Current measuring range: | 0.01 - 1 A |
| Min. adjustable delay-on energization time: | 0.1 s |
| Max. permitted delay-on energization time: | 30 s |
| Min. adjustable off-delay time: | 0 s |
| Max. permitted off-delay time: | 0 s |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| External current transformer: | no |
| Width: | 22.5 mm |
| Height: | 85.6 mm |
| Depth: | 103.7 mm |
| External power supply required: | no |
| Voltage type (supply voltage): | AC/DC |
| Supply voltage AC 50 Hz: | 24 - 240 V |
| Supply voltage AC 60 Hz: | 24 - 240 V |
| Supply voltage DC: | 24 - 240 V |
| Voltage measuring range: | 24 - 240 V |
| Type of current: | AC/DC |
| Response value amperage 1: | 0.1 - 1 A |
| Response value amperage 2: | 0.003 - 0.03 A |
| Voltage type (operating voltage): | AC/DC |
| Operating voltage AC 50 Hz: | 24 - 240 V |
| Operating voltage AC 60 Hz: | 24 - 240 V |
| Operating voltage DC: | 24 - 240 V |
| Rated switch current: | 4 A |
