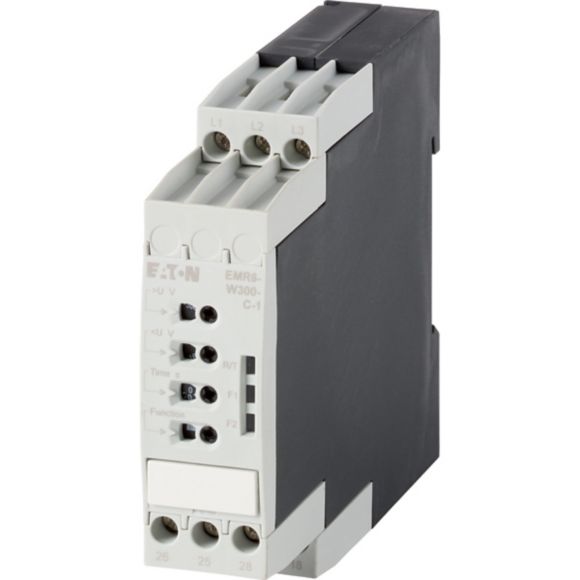

EMR6-W300-C-1 Przekaźnik monitorujący napięcie, Zał. i Wył. z opóźn., 160 - 300 V AC
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184776 |
| GTIN(EAN) | 4015081788125 |
| Price unit | piece |
| Catalog price | 1 913,88 zł (1 556,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 160 g |
| Country of origin | Niemcy |
| ETIM class: | Phase monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Phase sequence monitoring: | yes |
| Phase failure detection: | yes |
| Function under voltage detection: | yes |
| Function over voltage detection: | yes |
| Phase imbalance monitoring: | no |
| Voltage measuring range: | 160 - 300 V |
| Min. adjustable delay-on energization time: | 0.1 s |
| Max. permitted delay-on energization time: | 30 s |
| Min. adjustable off-delay time: | 0.1 s |
| Max. permitted off-delay time: | 30 s |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Width: | 22.5 mm |
| Height: | 85.6 mm |
| Depth: | 103.7 mm |
| External power supply required: | no |
| Voltage type (supply voltage): | AC |
| Supply voltage AC 50 Hz: | 160 - 300 V |
| Supply voltage AC 60 Hz: | 160 - 300 V |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 160 - 300 V |
| Operating voltage AC 60 Hz: | 160 - 300 V |
| Rated switch current: | 4 A |
