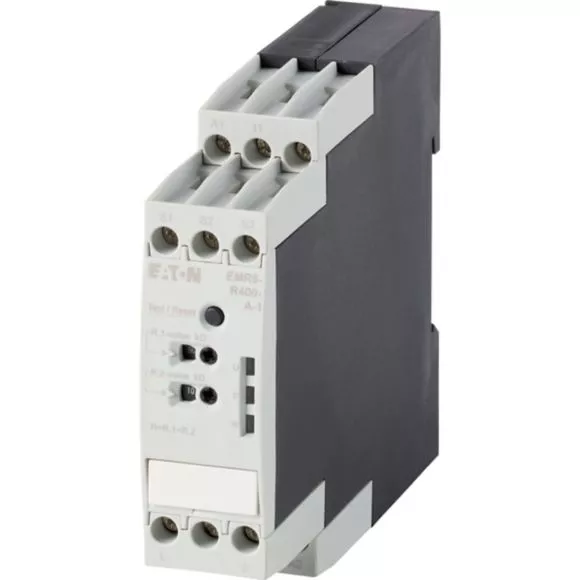

EMR6-R400-A-1 Przekaźnik monitorujący izolację, 0 - 400 V AC, 1 - 100 kΩ
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184773 |
| GTIN(EAN) | 4015081788095 |
| Price unit | piece |
| Catalog price | 1 922,49 zł (1 563,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 141 g |
| Country of origin | Niemcy |
| ETIM class: | Insulation and earth fault monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Function: | For AC-current system |
| Line capacity: | 10 µF |
| Response value impedance 1: | 1 - 100 kΩ |
| Response value impedance 2: | 0 - 0 kΩ |
| Indication of insulation value: | no |
| Error registration possible: | yes |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| Width: | 22.5 mm |
| Height: | 85.6 mm |
| Depth: | 103.7 mm |
| External power supply required: | no |
| Voltage type (supply voltage): | AC |
| Supply voltage AC 50 Hz: | 0 - 400 V |
| Supply voltage AC 60 Hz: | 0 - 400 V |
| Supply voltage DC: | 0 - 0 V |
| Voltage measuring range: | 0 - 400 V |
| Rated operating frequency: | 15 - 60 Hz |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 0 - 400 V |
| Operating voltage AC 60 Hz: | 0 - 400 V |
| Operating voltage DC: | 0 - 0 V |
| Rated switch current: | 4 A |
