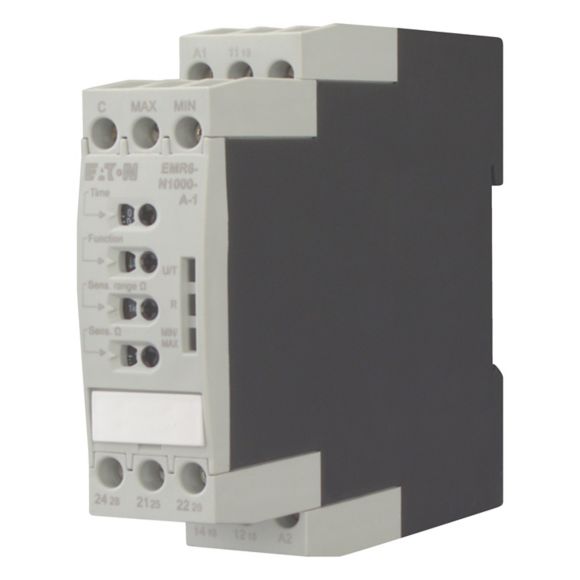

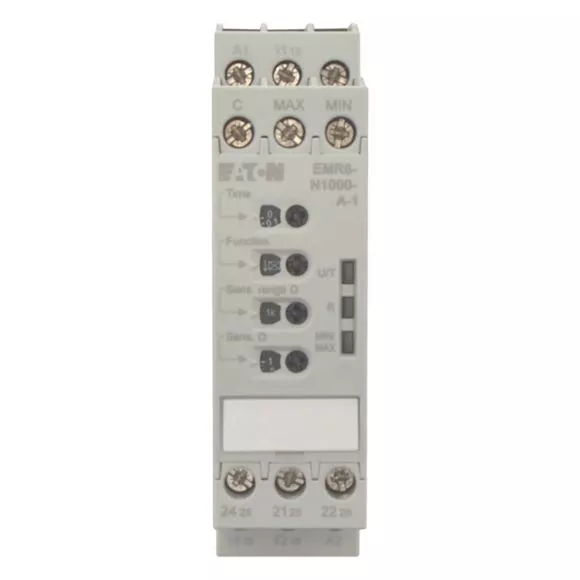

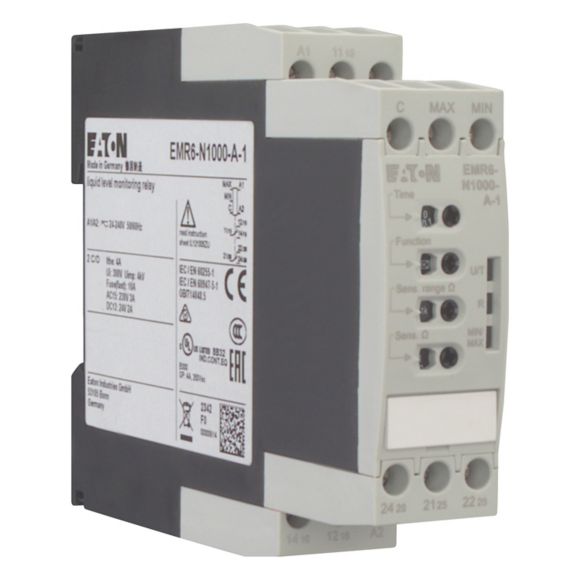

EMR6-N1000-A-1 Przekaźnik monitorujący poziom, 24 - 240 V AC/DC, 0.1 - 1000 kΩ
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184757 |
| GTIN(EAN) | 4015081787937 |
| Price unit | piece |
| Catalog price | 1 488,30 zł (1 210,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 143 g |
| Country of origin | Niemcy |
| ETIM class: | (Fill) level monitoring relay |
| Type of electric connection: | Screw connection |
| With detachable clamps: | no |
| Number of inputs for electrodes: | 3 |
| Min. adjustable operate delay time: | 0.1 s |
| Max. permitted operate delay time: | 30 s |
| Min. adjustable off-delay time: | 0.1 s |
| Max. permitted off-delay time: | 30 s |
| Response value sensitivity adjustable: | yes |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| Physical measurement principle: | Conductive |
| Cascadable: | no |
| Width: | 22.5 mm |
| Height: | 85.6 mm |
| Depth: | 103.7 mm |
| Voltage type (supply voltage): | AC/DC |
| Supply voltage AC 50 Hz: | 24 - 240 V |
| Supply voltage AC 60 Hz: | 24 - 240 V |
| Supply voltage DC: | 24 - 240 V |
| Voltage type (operating voltage): | AC/DC |
| Operating voltage AC 50 Hz: | 24 - 240 V |
| Operating voltage AC 60 Hz: | 24 - 240 V |
| Operating voltage DC: | 24 - 240 V |
| Rated switch current: | 4 A |
