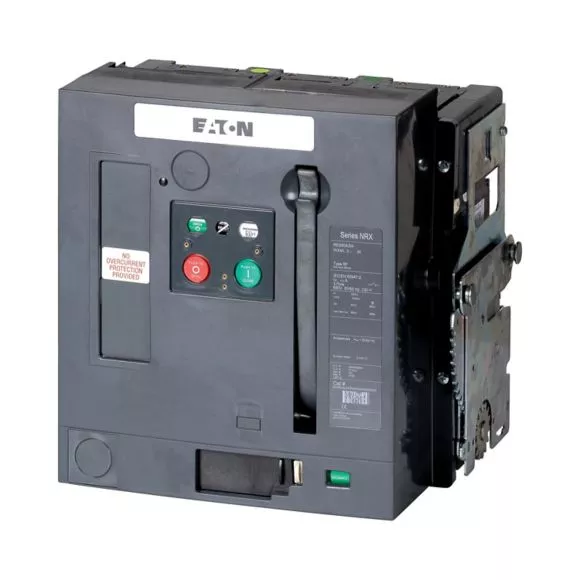

INX40N3-32W-1 Rozłącznik INX40N, 3-bieg., 3200 A, wysuwny
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 184070 |
| GTIN(EAN) | 4015081796090 |
| Price unit | piece |
| Catalog price | 98 544,72 zł (80 117,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 69 kg |
| Country of origin | Stany Zjednoczone |
| ETIM class: | Switch disconnector (low voltage) |
| Width: | 521 mm |
| Height: | 597 mm |
| Depth: | 584 mm |
| Rated operation power at AC-3, 400 V: | 0 kW |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current Iu: | 3200 A |
| Number of poles: | 3 |
| Rated operating voltage: | 690 - 690 V |
| Conditioned rated short-circuit current Iq: | 187 kA |
| Width in number of modular spacings: | 24 |
| Degree of protection (IP), front side: | IP31 |
| Number of auxiliary contacts as change-over contact: | 2 |
| Number of switches: | 1 |
| Interlockable: | yes |
| Motor drive integrated: | no |
| Type of electrical connection of main circuit: | Rail connection |
| Version as emergency stop installation: | no |
| Type of control element: | Push button |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Version as maintenance-/service switch: | yes |
| Rated operation power at AC-23, 400 V: | 0 kW |
| Rated short-time withstand current lcw: | 85 kA |
| Colour control element: | Green |
| Suitable for floor mounting: | yes |
| Suitable for front mounting 4-hole: | no |
| Suitable for front mounting centre: | no |
| Suitable for distribution board installation: | yes |
| Suitable for intermediate mounting: | yes |
| Max. rated operation voltage Ue AC: | 690 V |
| Motor drive optional: | yes |
| Voltage release optional: | yes |
| Device construction: | Built-in device slide-in technique (withdrawable) |
| Rated permanent current at AC-21, 400 V: | 0 A |
| Switching power at 400 V: | 0 kW |
| Version as reversing switch: | no |
| Rated permanent current at AC-23, 400 V: | 3200 A |
| With pre-assembled cabling: | no |
