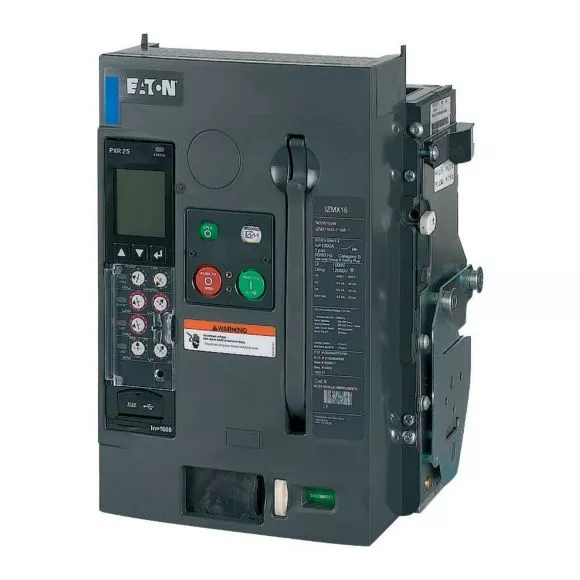

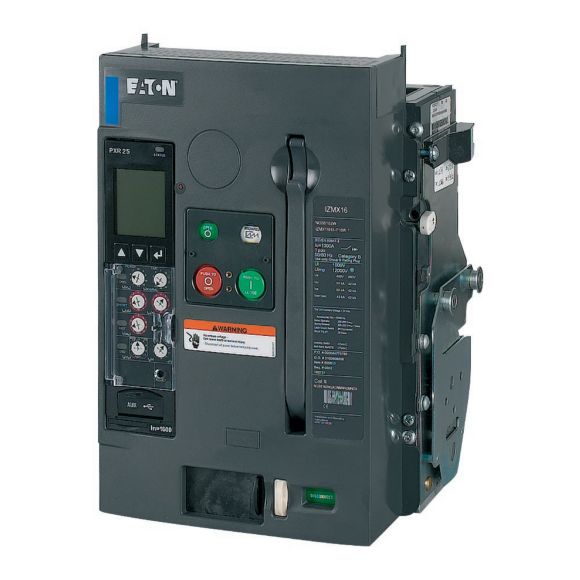

IZMX16B3-P08W-1 Wyłącznik IZMX16B, 3-bieg., 800 A, wysuwny, PXRP
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 183470 |
GTIN(EAN) | 4015081792061 |
Price unit | piece |
Catalog price | 42 306,01 zł (34 395,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Leistungsschalter IZMX16 (Offene Leistungsschalter/Trennschalter), 3-polig, Strombereich: Bis zu 4000 A, Bemessungsstrom = Bemessungsdauerstrom (In = Iu): 800 A, bis 440 V 50/60 Hz (Icu): 42 kA, bis 440 V 50/60 Hz (Ics): 42 kA, Überlastauslöser, min. (Ir): 320 A, Überlastauslöser, max. (Ir): 800 A, Installationsart: Ausfahrtechnik, Standard/Genehmigung: IEC, Schutzfunktion: P Messung
Additional features:
Information | Value |
---|---|
Net weight: | 27,74 kg |
Country of origin | Chiny |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 800 A |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 42 kA |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Rail connection |
Device construction: | Built-in device slide-in technique (withdrawable) |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 2 |
With switched-off indicator: | yes |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Back side |
Type of control element: | Push button |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | yes |
Degree of protection (IP): | IP31 |
Power loss: | 80 W |
