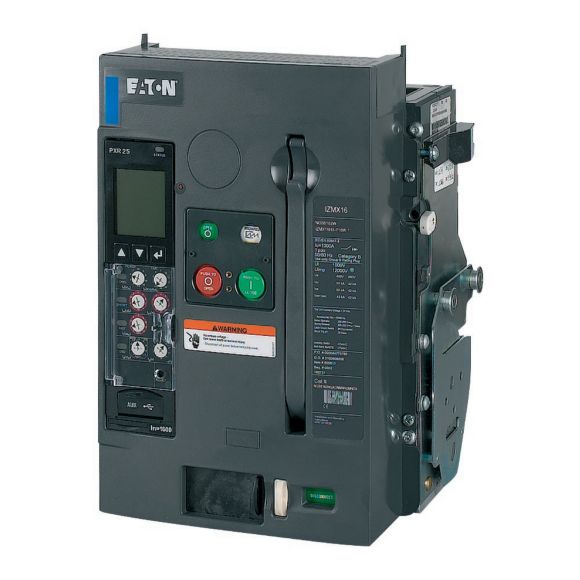

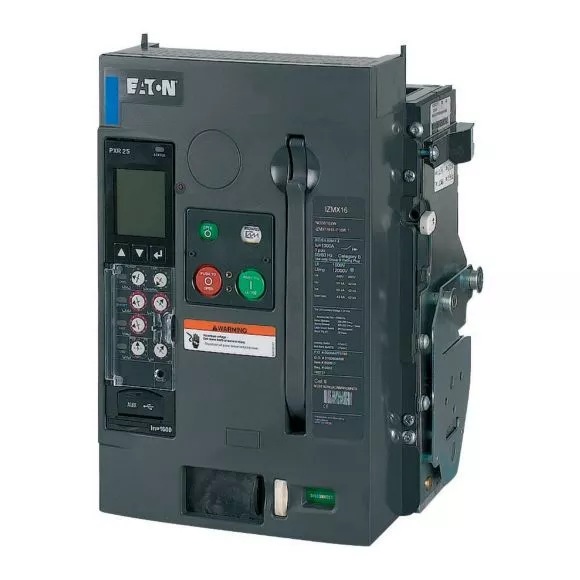

IZMX16B3-P06W-1 Wyłącznik IZMX16B, 3-bieg., 630 A, wysuwny, PXRP
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 183469 |
GTIN(EAN) | 4015081792054 |
Price unit | piece |
Catalog price | 38 635,35 zł (31 410,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 27,74 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Rated permanent current Iu: | 630 A |
Rated voltage: | 690 - 690 V |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 42 kA |
Overload release current setting: | 252 - 630 A |
Adjustment range short-term delayed short-circuit release: | 378 - 6300 A |
Adjustment range undelayed short-circuit release: | 1260 - 9450 A |
Integrated earth fault protection: | no |
Type of electrical connection of main circuit: | Rail connection |
Device construction: | Built-in device slide-in technique (withdrawable) |
Suitable for DIN rail (top hat rail) mounting: | no |
DIN rail (top hat rail) mounting optional: | no |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as change-over contact: | 2 |
With switched-off indicator: | yes |
With integrated under voltage release: | no |
Number of poles: | 3 |
Position of connection for main current circuit: | Back side |
Type of control element: | Push button |
Complete device with protection unit: | yes |
Motor drive integrated: | no |
Motor drive optional: | yes |
Degree of protection (IP): | IP31 |
