KLV-48UPM-SF Rozdzielnica multimedialna podtynk. IP30 1x14 superpłaska
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 178833 |
GTIN(EAN) | 4015081741625 |
Price unit | piece |
Catalog price | 1 439,10 zł (1 170,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

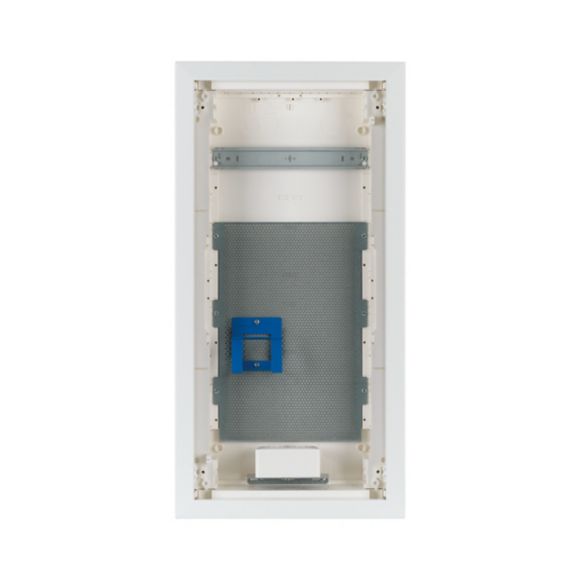

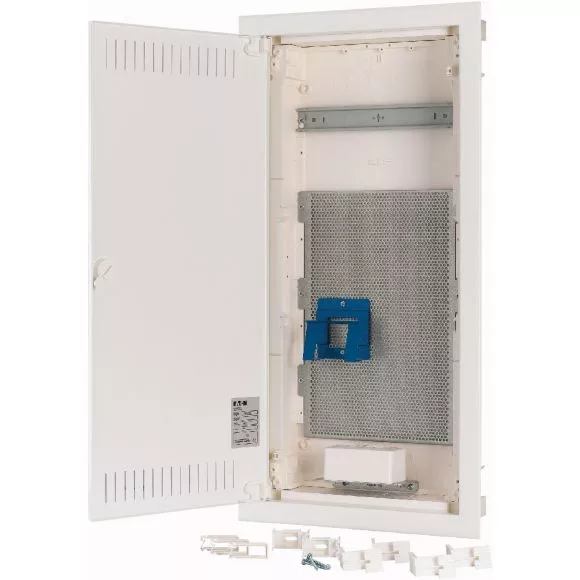

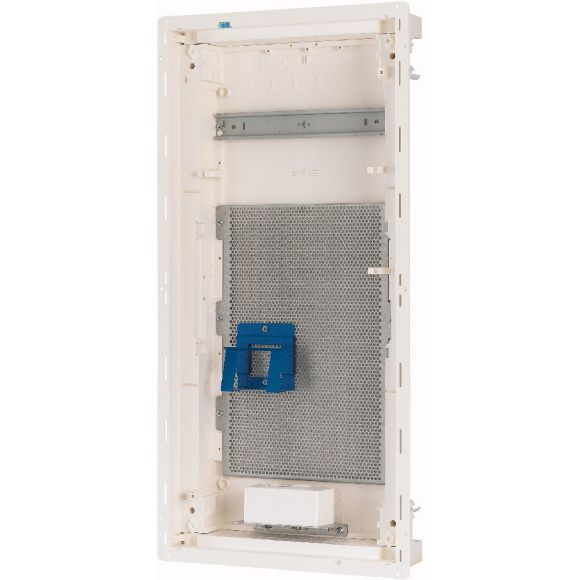

Second generation KLV flush mounting media enclosures, plastic distribution board with sheet steel door with ventilation openings, marking slot in wall box, one-of-a-kind super-slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat cable routing, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, 1x mounting rail, microperforated mounting plate, 1x device holder, 1x two-way socket outlet with plug-in units and Euro2 adapter, spirit level for leveling, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, nail lugs, installation instructions, special packaging designed to meet real-life application requirements. Standards: Approved for multi-media applications in GP universal enclosure in accordance with IEC/EN 60670-24.
Additional features:
Information | Value |
---|---|
Net weight: | 6,5 kg |
ETIM class: | Distributor for telecommunication |
Model: | Distributor enclosure |
Mounting method: | Flush-mounted |
With connecting lugs: | no |
Max. number of dual cores: | 12 |
Mounting dimension (standardised): | Other |
110-compatible: | yes |
LSA: | no |
SID: | no |
Material: | Steel plate/plastic |
Degree of protection (IP): | IP30 |
Degree of protection (NEMA): | Other |
Colour: | White |
Height: | 715 mm |
Width: | 360 mm |
Depth: | 100 mm |
Number of mountable connection strips: | 12 |
DIN-compatible: | yes |
Compatible with Grade2TV according to XP-C 90-483: | no |
Compatible with Grade3TV according to XP-C 90-483: | no |
