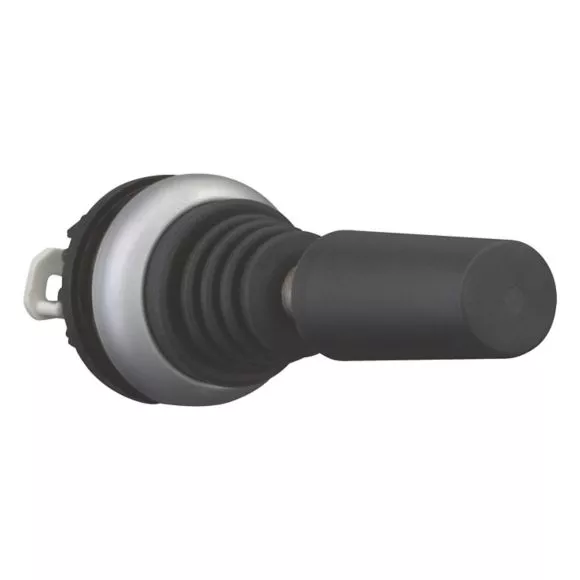

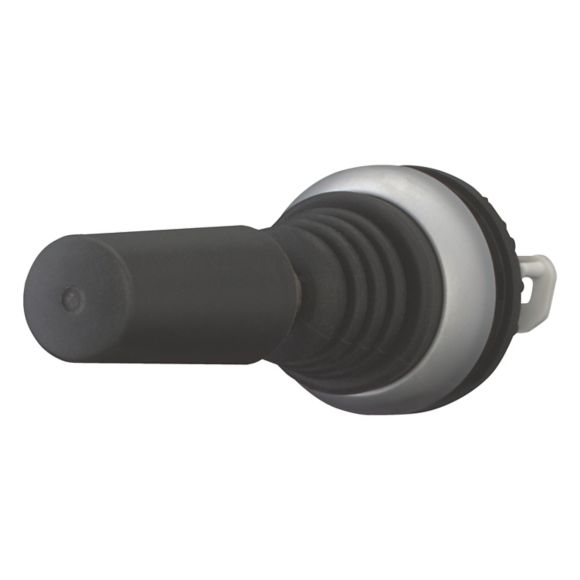

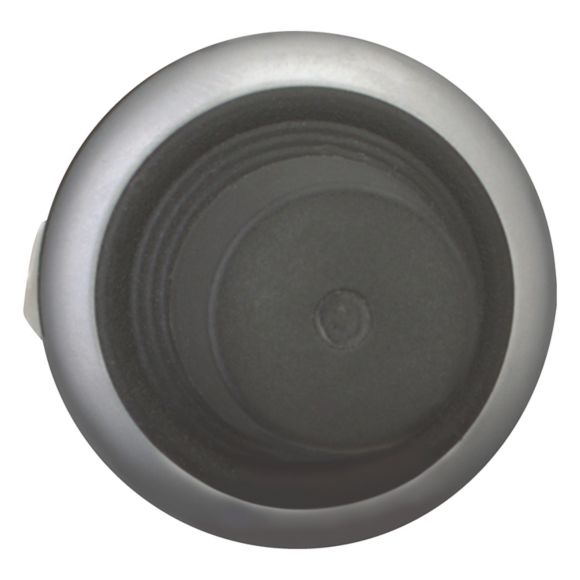

M22-WJS4 Joystick, 4 poz., sam., metal
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 178568 |
| GTIN(EAN) | 4015081738977 |
| Price unit | piece |
| Catalog price | 357,19 zł (290,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
The four-way joystick in the RMQ-Titan product range meets special control requirements. It differentiates between momentary and maintained functions. The pushbutton fulfils degree of protection IP66 and is approved for use world wide.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 28 g |
| ETIM class: | Control switch, Joystick |
| Rated operation current Ie at AC-21, 400 V: | 0 A |
| Centre mounting, hole diameter: | 22.5 mm |
| Joy stick length: | 75 mm |
| Number of actuation directions: | 4 |
| Number of switch positions: | 1 |
| Number of normally open contacts per actuation direction: | 0 |
| Number of normally closed contacts per actuation direction: | 0 |
| Number of make-and-break contacts per direction: | 0 |
| With retraction in 0-position: | yes |
| Locking in 0-position: | no |
| Coder: | no |
| Analogue output signal configurable: | no |
| With front ring: | yes |
| Material front ring: | Plastic |
| Colour front ring: | Titanium |
| Degree of protection (IP): | IP66 |
| Degree of protection (NEMA): | 4X, 13 |
