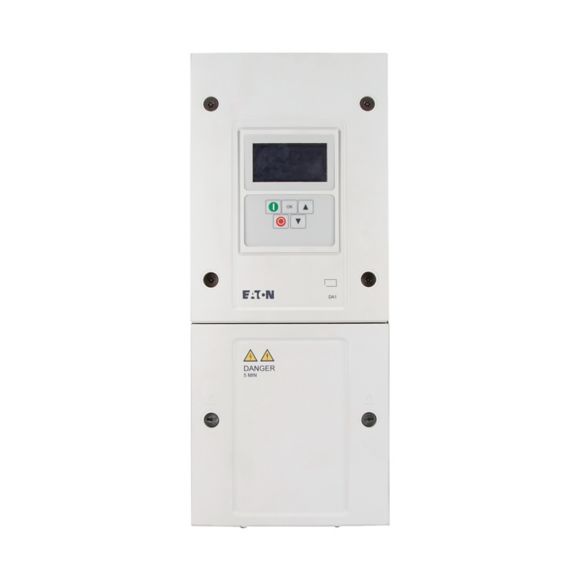

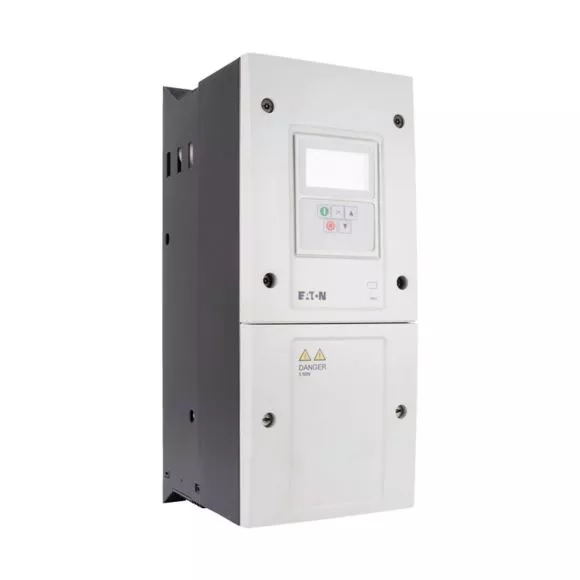

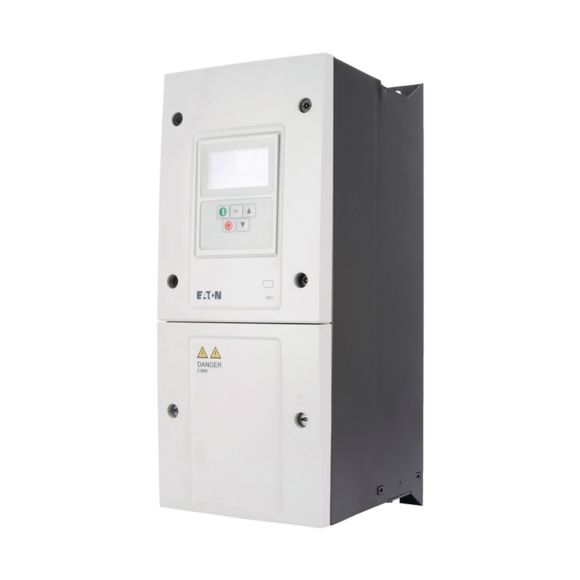

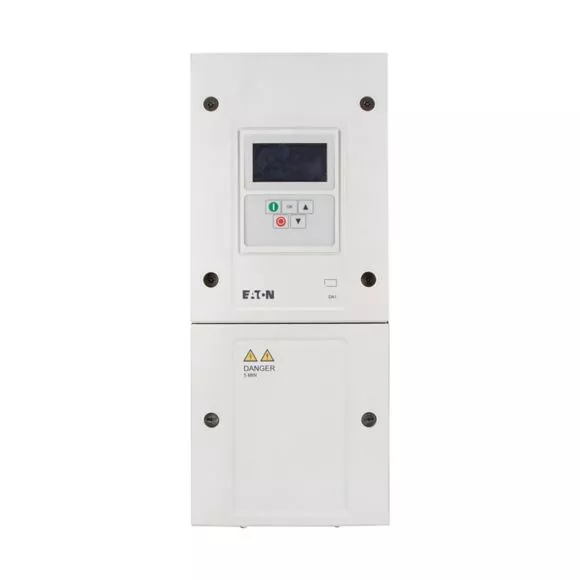

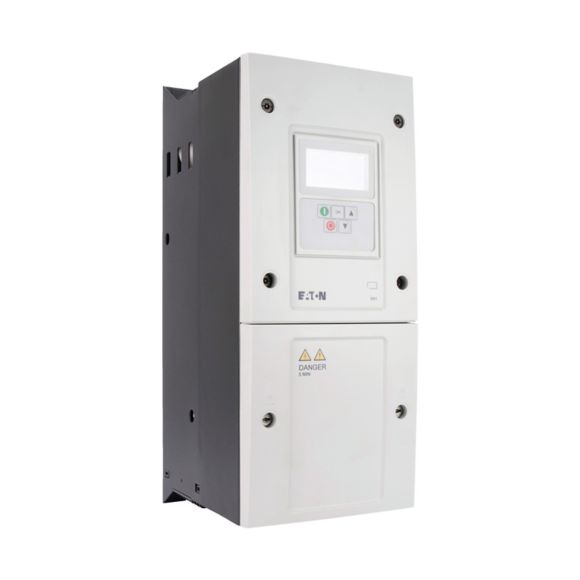

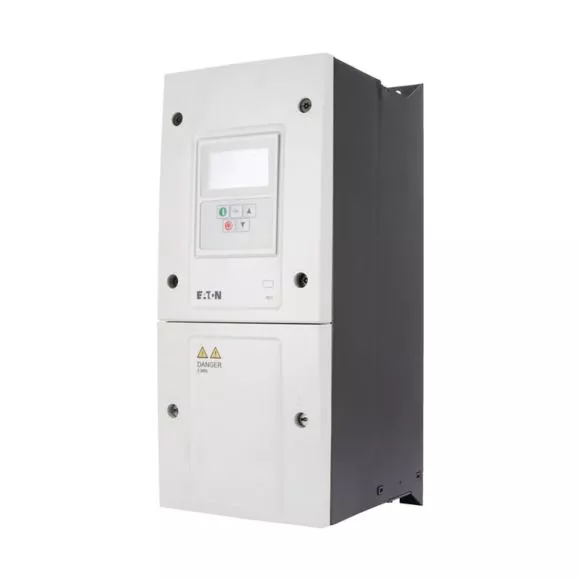

DA1-35034NB-B55C Przemiennik, 34A, 3x500-600V, bez RFI, IP55
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 176967 |
| GTIN(EAN) | 4015081714100 |
| Price unit | piece |
| Catalog price | 15 459,87 zł (12 569,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Compact DA1 variable frequency drives feature enormous functionality for applications with outputs of up to 250 kW and are the perfect match for demanding, speed-dependent applications. They come with an integrated EMC filter and braking transistors. In addition, they also come with the Modbus RTU and CANopen protocols integrated as standard.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 11,5 kg |
| Country of origin | Wielka Brytania |
| ETIM class: | Frequency converter =< 1 kV |
| Mains voltage: | 500 - 600 V |
| Mains frequency: | 50/60 Hz |
| Number of phases input: | 3 |
| Number of phases output: | 3 |
| Max. output frequency: | 500 Hz |
| Max. output voltage: | 600 V |
| Nominal output current I2N: | 34 A |
| Max. output at quadratic load at rated output voltage: | 22 kW |
| Max. output at linear load at rated output voltage: | 22 kW |
| Relative symmetric net frequency tolerance: | 10 % |
| Relative symmetric net voltage tolerance: | 10 % |
| Number of analogue outputs: | 2 |
| Number of analogue inputs: | 2 |
| Number of digital outputs: | 2 |
| Number of digital inputs: | 5 |
| With control element: | yes |
| Application in industrial area permitted: | yes |
| Application in domestic- and commercial area permitted: | yes |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for PROFIBUS: | yes |
| Supporting protocol for CAN: | yes |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | yes |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | yes |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for BACnet: | no |
| Supporting protocol for other bus systems: | yes |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces other: | 0 |
| With optical interface: | no |
| With PC connection: | yes |
| Integrated breaking resistance: | yes |
| 4-quadrant operation possible: | yes |
| Type of converter: | U converter |
| Degree of protection (IP): | IP55 |
| Degree of protection (NEMA): | 12 |
| Height: | 450 mm |
| Width: | 173 mm |
| Depth: | 240 mm |
| Power consumption: | 660 W |
