IKA-3/54-ST-UV Szafka modułowa IKA - UV
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 174195 |
| GTIN(EAN) | 4015081706570 |
| Price unit | piece |
| Catalog price | 1 985,22 zł (1 614,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

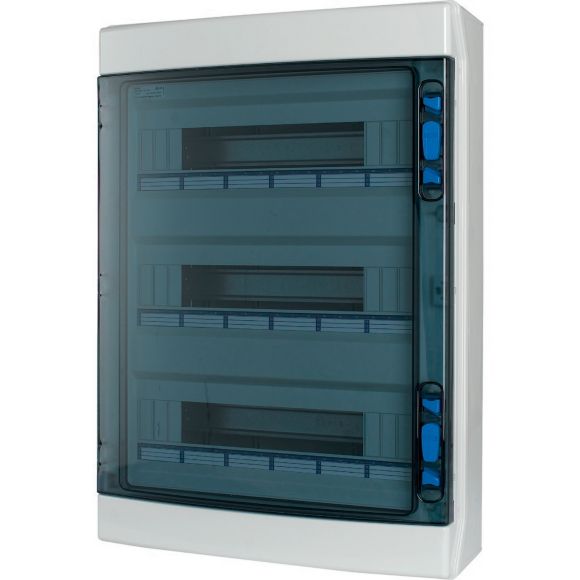

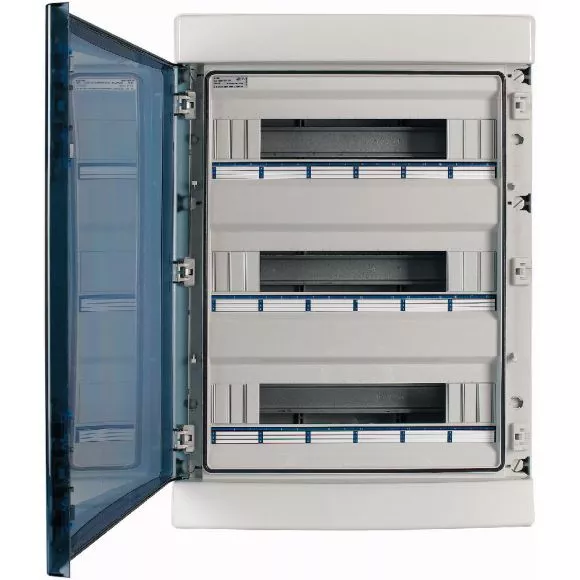

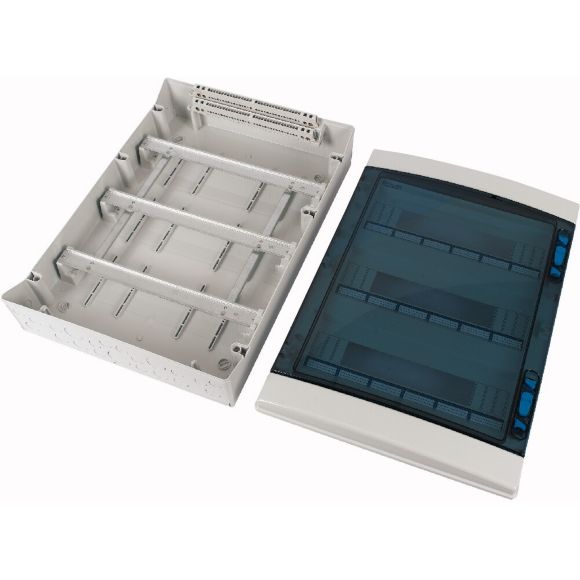

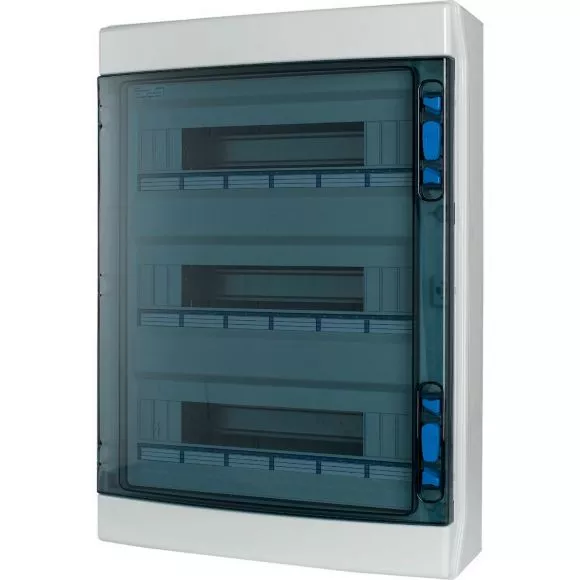

IKA distribution board for damp locations RAL7035, with neutral and protective conductor terminal, foamed-in-place gasket, applied using CNC, for IP65 degree of protection as per IEC/EN 62208, 54 space units, 3-row, UV-stable acc. DIN EN ISO 4892-2, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, integrated module compensation system designed to accommodate various device widths, metric knockouts with centering point, enclosure completely made of polycarbonates (UV resistant), for installing switching and protective devices, in accordance with dimension standard DIN 43 880 with an installation depth of 70 mm or 85 mm, AC 1000 V, DC 1500 V, RoHs-compliant, consisting of a plastic base with a withdrawable DIN-rail made of galvanized sheet steel, DIN-rail adjustable in height in 2 positions, direct mounting wall mounting holes, finger-proof IP2X neutral and protective conductor terminals, knockout for metric cable entries on top and bottom, side knockouts for connection element for connecting two or more enclosures next to each other, top with 46-mm device opening, transparent door, flush with front, can be fitted on the right or left, door handing can be easily changed on-site without having to remove the enclosure top., enclosure top with sealable quick-release fasteners, door lockable with accessories LOCK-KIT-IKA, door can be sealed, including blanking strip and inscription labels.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,12 kg |
| ETIM class: | Small distribution board |
| Mounting method: | Surface mounted |
| Number of rows: | 3 |
| Width in number of modular spacings: | 18 |
| Type of covering: | Door |
| Cover model: | With notch |
| Transparent cover/door: | yes |
| Housing material: | Plastic |
| Height: | 586 mm |
| Width: | 418 mm |
| Depth: | 145 mm |
| Built-in depth: | 70 mm |
| Built-in height: | 0 mm |
| Built-in width: | 0 mm |
| Inner depth: | 60 mm |
| Earthing terminal block: | no |
| Neutral terminal block: | no |
| DIN-rail: | yes |
| With mounting plate: | no |
| Extension possible: | yes |
| EMC-version: | no |
| Colour: | Grey |
| RAL-number: | 7035 |
| Degree of protection (IP): | IP65 |
| With lock: | no |
| Type of closure: | Other |
| Signal passing door: | no |
