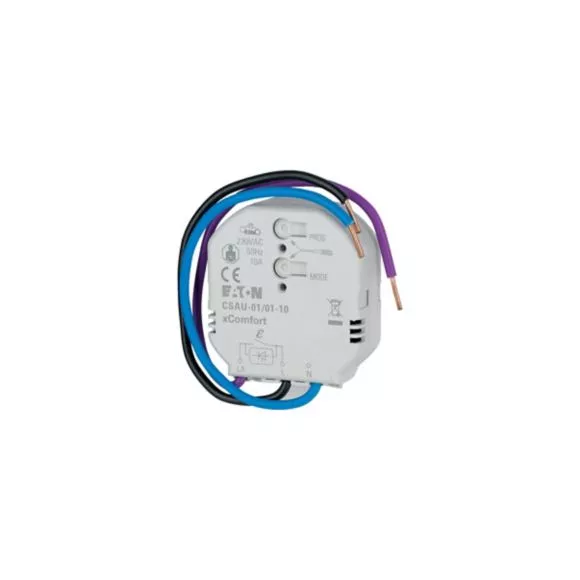

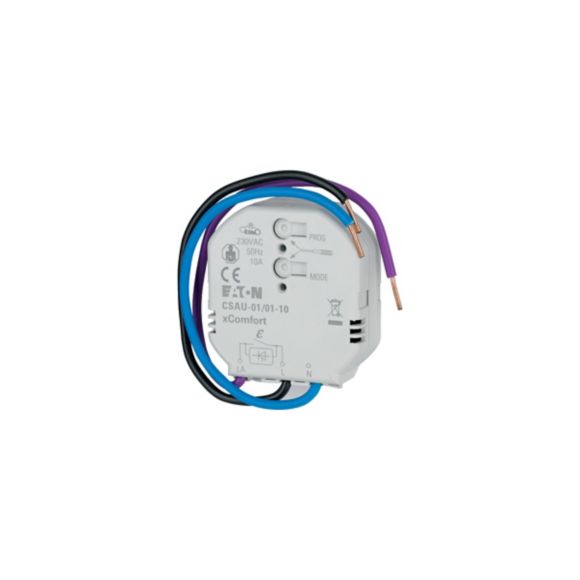

CSAU-01/01-10 Odbiornik sterujący 10A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 172937 |
| GTIN(EAN) | 4015081695256 |
| Price unit | piece |
| Catalog price | 1 402,20 zł (1 140,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Small design Switching Actuator 230VAC/10A. Easy to use with existing wall switches, control lights in stairways and hallways, switch lights directly with Motion sensors and twilight switches. Small design for installation behind switches, retractive switches, Motion sensors, wall sockets or in junction boxes. Suitable for high switching performance to switch a variety of loads such as lighting, ventilation, heating, etc..
Additional features:
| Information | Value |
|---|---|
| Net weight: | 38 g |
| Country of origin | Czechy |
| ETIM class: | Switch actuator for bus system |
| Bus system KNX: | no |
| Bus system KNX-RF (Radio Frequent): | no |
| Bus system radio frequent: | yes |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | xComfort |
| Radio frequent bidirectional: | yes |
| Mounting method: | Flush-mounted |
| Width in number of modular spacings: | 3 |
| Local operation/hand operation: | yes |
| With LED indication: | yes |
| Number of digital inputs: | 0 |
| Max. switching power: | 2300 W |
| Max. switching power LED: | 0 W |
| Output power: | 2300 W |
| Suitable for C-load: | yes |
| Max. number of switching contacts: | 1 |
| Max. switching current: | 10 A |
| Rated current: | 10 A |
| Rated operating voltage: | 230 - 230 V |
| Different phases connectable: | no |
| With bus connection: | yes |
| Bus module detachable: | yes |
| Min. depth of built-in installation box: | 18 mm |
| Modular expandability: | no |
| Degree of protection (IP): | IP20 |
| Power consumption: | 0.23 W |
