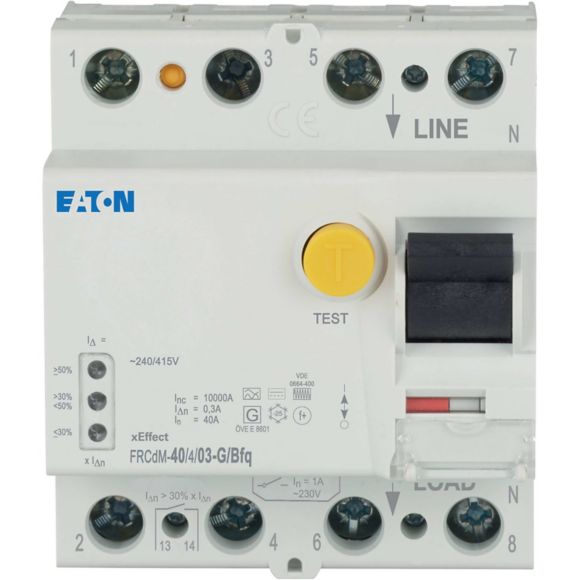

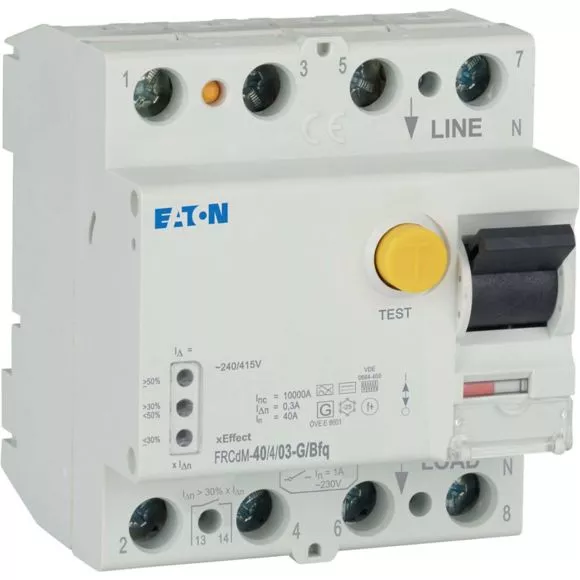

FRCdM-40/4/03-G/Bfq Cyfrowy wył. Różnicowoprądowy 10kA, In=40A,IΔN=0,3A, typ G/Bfq,4-bieg. Seria FRCdM
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 167905 |
| GTIN(EAN) | 4015081644803 |
| Price unit | piece |
| Catalog price | 9 745,29 zł (7 923,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
AC/DC sensitive residual current circuit-breaker independent of grid voltage for fault and additional protection with additional digital functions, 40 A_x, 4p, 300 mA, type G/BFQ
Additional features:
| Information | Value |
|---|---|
| Net weight: | 320 g |
| Country of origin | Czechy |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 4 |
| Rated voltage: | 415 V |
| Rated current: | 40 A |
| Rated fault current: | 0.3 A |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | B |
| Selective protection: | yes |
| Short-time delayed tripping: | yes |
| Short-circuit breaking capacity (Icw): | 10 kA |
| Surge current capacity: | 3 kA |
| Voltage type: | AC |
| With interlocking device: | yes |
| Frequency: | 50 Hz |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 70.5 mm |
| Ambient temperature during operating: | -25 - 50 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section multi-wired: | 1.5 - 16 mm² |
| Connectable conductor cross section solid-core: | 1.5 - 35 mm² |
| Explosion-proof: | no |
| RAL-number (similar): | 7035 |
