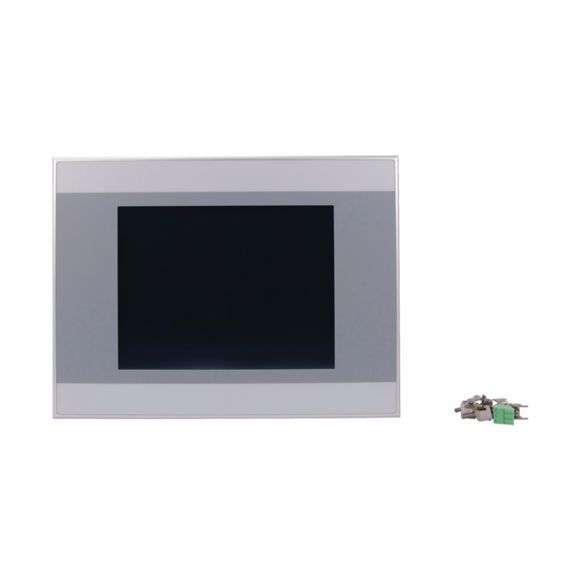

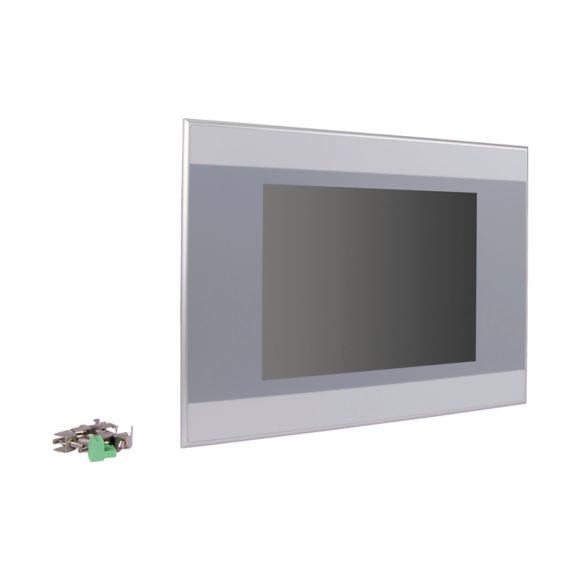

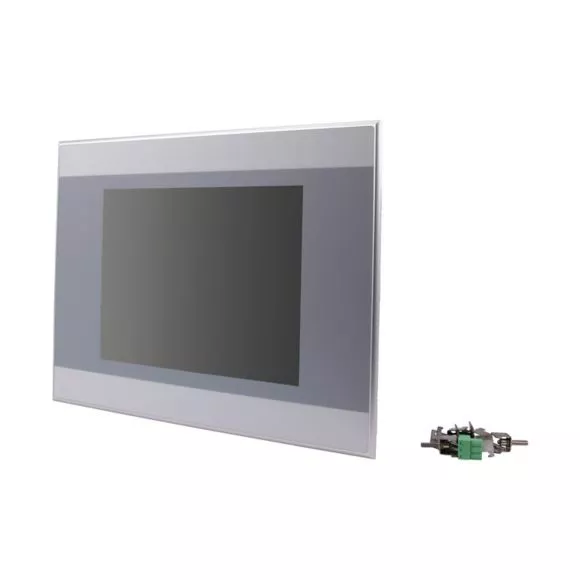

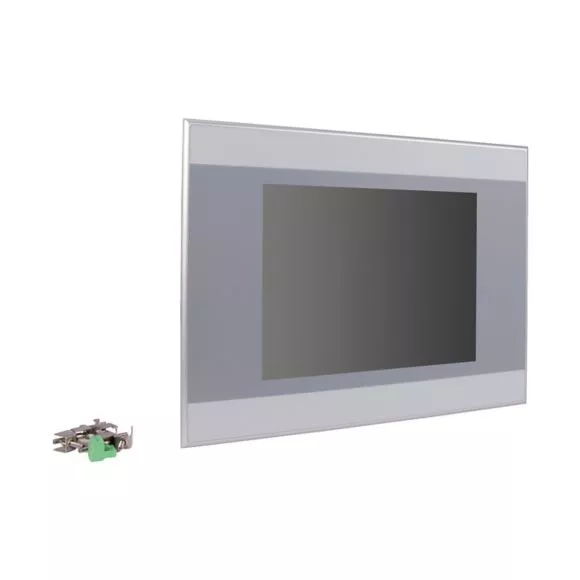

XV-152-D0-10TVR-10 Panel 10" Kolor ETH, RS232
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 150607 |
| GTIN(EAN) | 7640130097179 |
| Price unit | piece |
| Catalog price | 22 633,23 zł (18 401,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

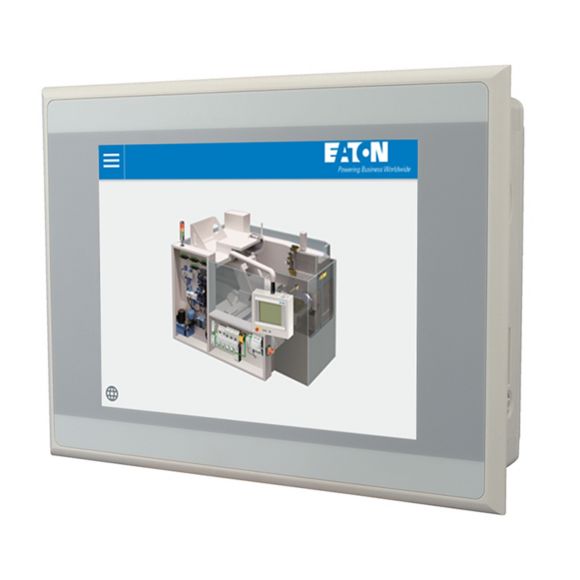

W serii XV150 wykorzystano wyjątkowo sprawny interfejs HMI-PLC z rezystancyjnym panelem dotykowym. Seria obejmuje urządzenia w wytrzymałej obudowie z tworzywa sztucznego z szerokokątnym ekranem o wymiarach od 5.7 do 10.4 cala. Wszystkie urządzenia można również montować w pionie. Oprócz interfejsu Ethernet urządzenia mogą również obsługiwać inne interfejsy komunikacji, (CAN, PROFIBUS-DP, RS232, RS485 smartWire-DT). Przez interfejs SmartWire-DT można bezpośrednio podłączać wszystkie komunikacyjne aparaty łączeniowe, w tym również czujnik. Ogranicza to znacznie ilość kabli. Wszystkie urządzenia mają swój własny serwer WWW.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,95 kg |
| Country of origin | Czechy |
| ETIM class: | Graphic panel |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 20.4 - 28.8 V |
| Voltage type (supply voltage): | DC |
| Number of HW-interfaces industrial Ethernet: | 1 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 1 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces USB: | 2 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces other: | 0 |
| With SW interfaces: | yes |
| Supporting protocol for TCP/IP: | yes |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | yes |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| Type of display: | TFT |
| Colour display: | yes |
| Number of colours of the display: | 65536 |
| Number of grey-scales/blue-scales of display: | 0 |
| Screen diagonal: | 10.4 cal |
| Number of pixels, horizontal: | 640 |
| Number of pixels, vertical: | 480 |
| Useful project memory/user memory: | 64000 kB |
| With numeric keyboard: | yes |
| With alpha numeric keyboard: | yes |
| Number of function buttons, programmable: | 0 |
| Number of buttons with LED: | 0 |
| Number of system buttons: | 1 |
| Touch technology: | Resistive touch |
| With message indication: | yes |
| With message system (incl. buffer and confirmation): | yes |
| Process value representation (output) possible: | yes |
| Process default value (input) possible: | yes |
| With recipes: | yes |
| Number of password levels: | 200 |
| With printer output: | yes |
| Number of online languages: | 100 |
| Additional software components, loadable: | yes |
| Degree of protection (IP), front side: | IP65 |
| Degree of protection (NEMA), front side: | 4X |
| Operating temperature: | 0 - 50 °C |
| Rail mounting possible: | no |
| Wall mounting/direct mounting: | no |
| Suitable for safety functions: | no |
| Width of the front: | 345 mm |
| Height of the front: | 260 mm |
| Built-in depth: | 49 mm |
| Power consumption: | 2.5 W |
| Supporting protocol for EtherCAT: | no |
| Certified for UL hazardous location class I: | no |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | no |
| Certified for UL hazardous location group A (acetylene): | no |
| Certified for UL hazardous location group B (hydrogen): | no |
| Certified for UL hazardous location group C (ethylene): | no |
| Certified for UL hazardous location group D (propane): | no |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
