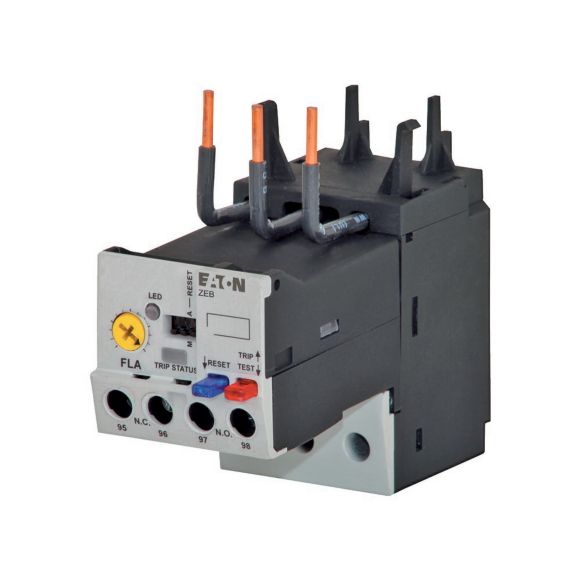

ZEB12-20 Elektr. przekaźnik przeciąż. 4-20A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 136482 |
| GTIN(EAN) | 4015081332625 |
| Price unit | piece |
| Catalog price | 1 275,51 zł (1 037,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ochronny przekaźnik silnikowy wg IEC60947-4-1, dopuszczenie ATEX UL/CSA, elektroniczna szerokozakresowa ochrona przeciążeniowa (5:1), regulowane klasy wyzwalania, ochrona przed brakiem fazy i asymetrią, resetowanie automatyczne / ręczne, aparaty przełączające i wymiary przewodów odpowiednio do siły rozruchu (CLASS), zamontowanie bezpośrednio, niewielka moc straty
Additional features:
| Information | Value |
|---|---|
| Net weight: | 290 g |
| Country of origin | Dominikana |
| ETIM class: | Electronic overload relay |
| Adjustable current range: | 4 - 20 A |
| Mounting method: | Direct attachment |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Release class: | Adjustable |
| Reset function automatic: | yes |
| Reset function input: | no |
| Reset function push-button: | yes |
| External power supply required: | no |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 230 - 690 V |
| Operating voltage AC 60 Hz: | 230 - 690 V |
| Operating voltage DC: | 0 - 0 V |
| Width: | 45 mm |
| Height: | 110 mm |
| Depth: | 108 mm |
