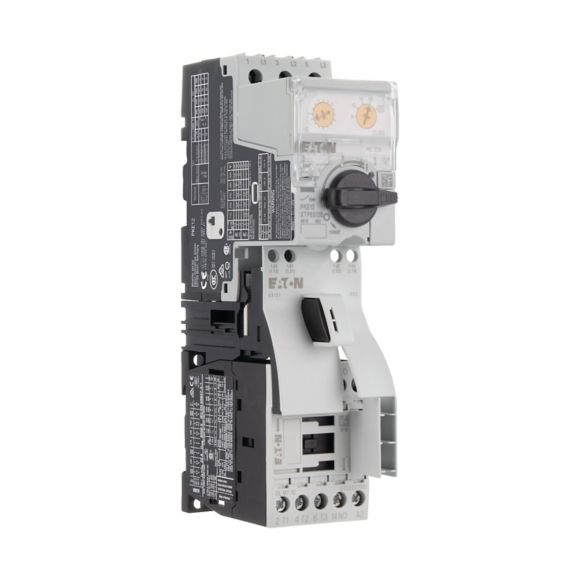

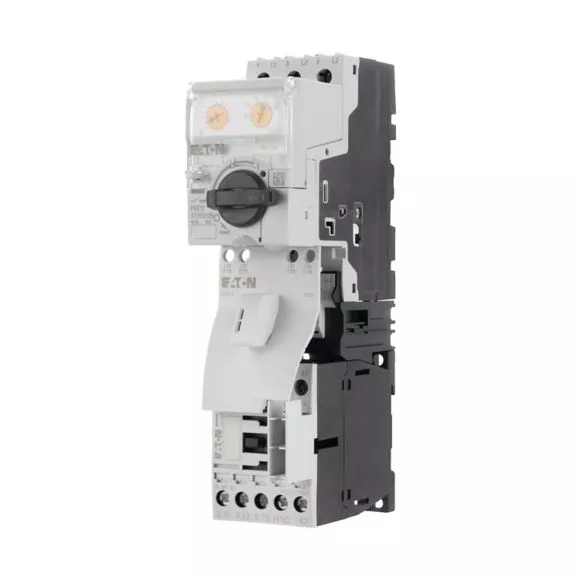

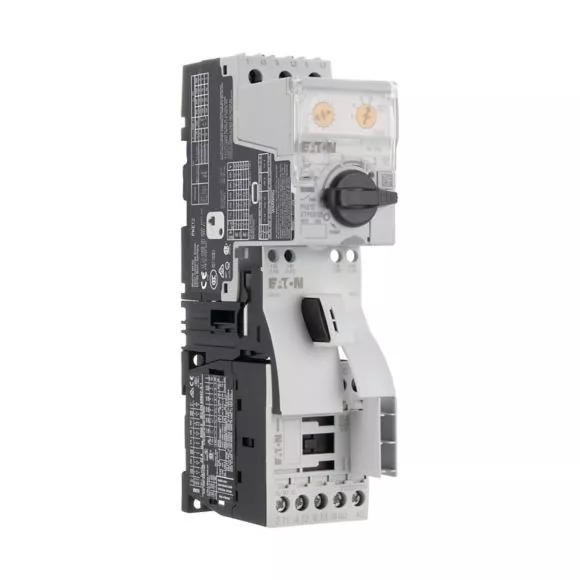

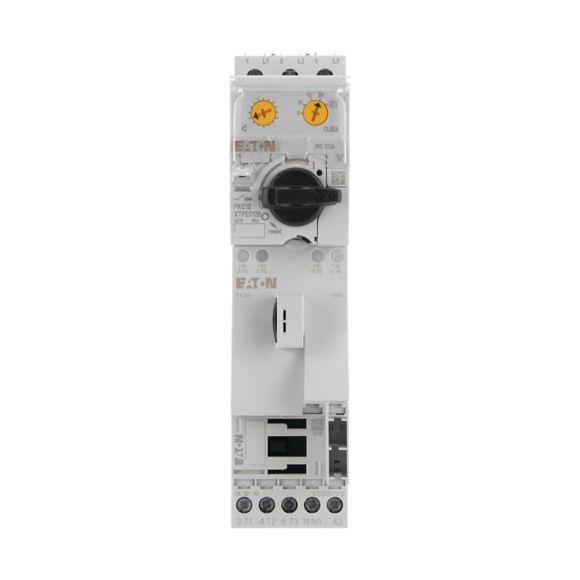

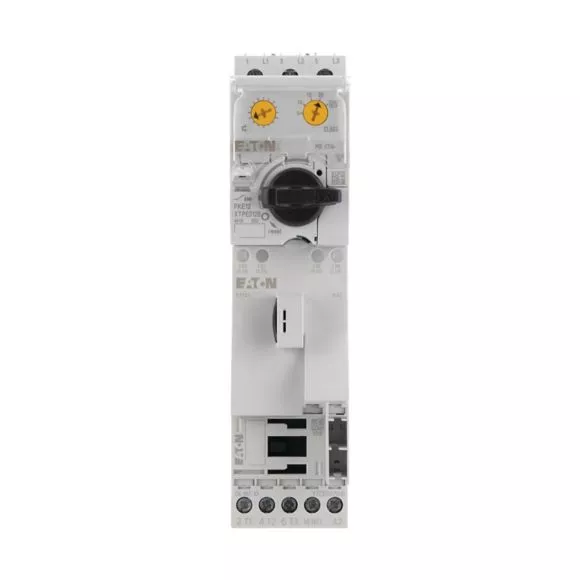

MSC-DE-12-M7(230V50HZ) Rozrusznik silnikowy z wyłącznikiem PKE,
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 121739 |
| GTIN(EAN) | 4015081195497 |
| Price unit | piece |
| Catalog price | 2 135,28 zł (1 736,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Kompaktowy rozrusznik silnika (stycznik i wyłącznik silnikowy) zgodny z IEC60947-4-1, elektroniczna szerokozakresowa ochrona przeciążeniowa (4:1), ochrona przed brakiem fazy i asymetrią, duża zdolność wyłączania zwarciowego, ustawiana klasa wyzwolenia, funkcja odłącznika wyłącznika silnikowego. Elastyczne dopasowanie zakresu prądu wyłącznika silnikowego poprzez wymienne elektroniczne bloki wyzwolenia. Możliwość rozbudowy szerokim zakresem akcesoriów ze standardowej serii wyłączników silnikowych / styczników mocy. Urządzenie na wszystkich rynkach , dopuszczenie ATEX (wyłącznik silnikowy)
Additional features:
| Information | Value |
|---|---|
| Net weight: | 724 g |
| Country of origin | Niemcy |
| ETIM class: | Motor starter/motor starter combination |
| Type of motor starter: | Direct online starter (DOL) |
| With short-circuit release: | yes |
| Rated control supply voltage AC 50 Hz: | 230 - 230 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Rated operation power at AC-3, 230 V, 3-phase: | 1.5 kW |
| Rated operation power at AC-3, 400 V: | 3 kW |
| Rated power, 460 V, 60 Hz, 3-phase: | 0 kW |
| Rated power, 575 V, 60 Hz, 3-phase: | 0 kW |
| Rated operation current Ie: | 6.6 A |
| Rated operation current at AC-3, 400 V: | 7 A |
| Overload release current setting: | 3 - 12 A |
| Rated conditional short-circuit current, type 1, 480 Y/277 V: | 0 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V: | 0 A |
| Rated conditional short-circuit current, type 2, 230 V: | 0 A |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Ambient temperature, upper operating limit: | 55 °C |
| Temperature compensated overload protection: | yes |
| Release class: | Adjustable |
| Type of electrical connection of main circuit: | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Rail mounting possible: | no |
| With transformer: | no |
| Number of command positions: | 0 |
| Suitable for emergency stop: | no |
| Coordination class according to IEC 60947-4-3: | Class 1 |
| Number of indicator lights: | 0 |
| External reset possible: | no |
| With fuse: | no |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | Other |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | no |
| Width: | 45 mm |
| Height: | 198 mm |
| Depth: | 102 mm |
| Power consumption: | 1.4 W |
