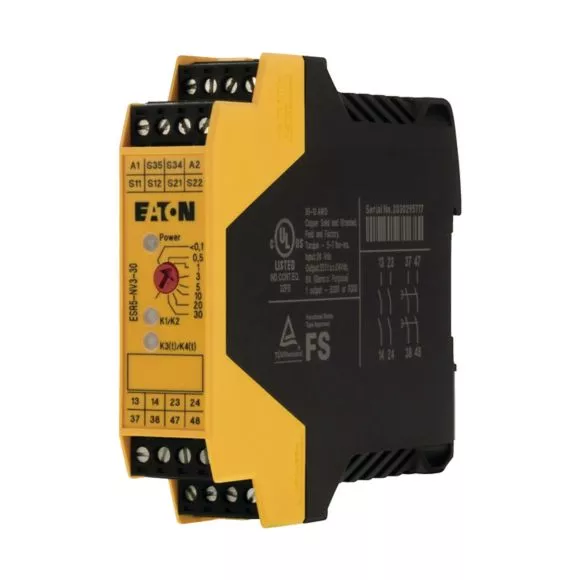

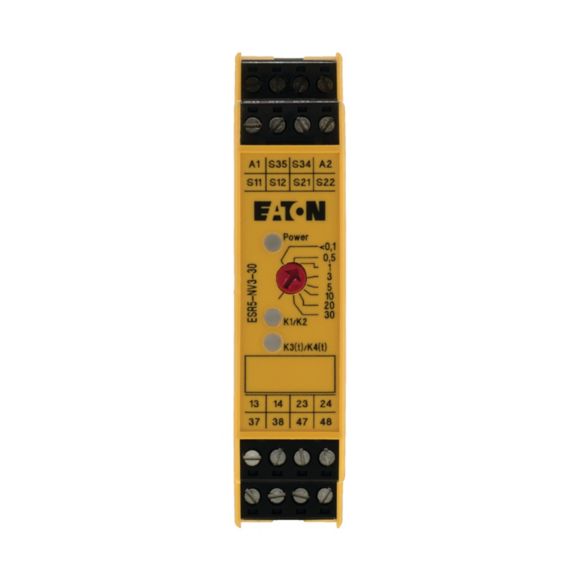

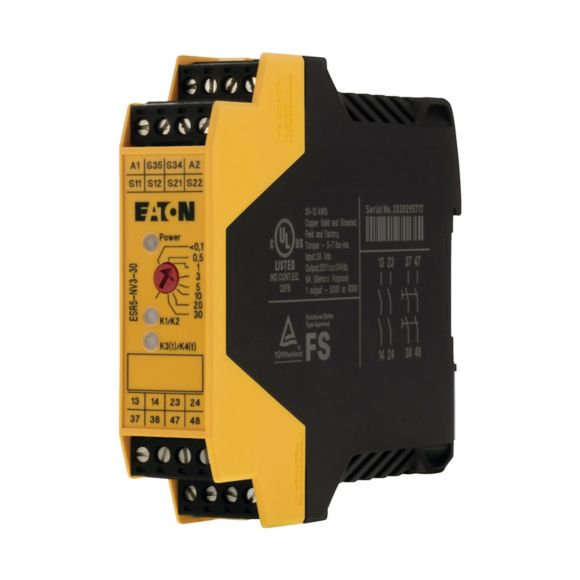

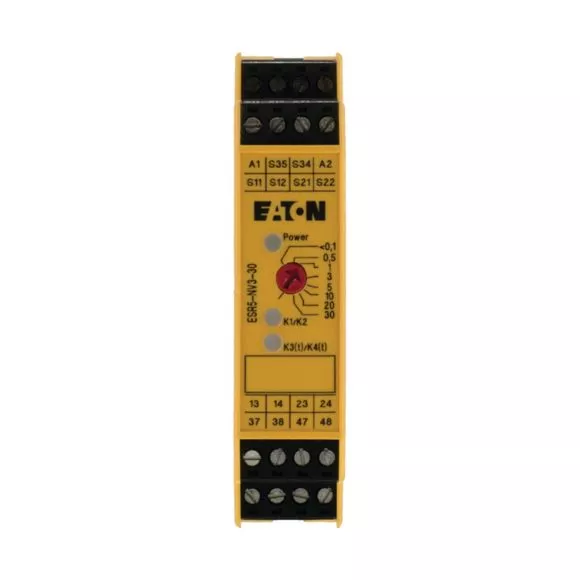

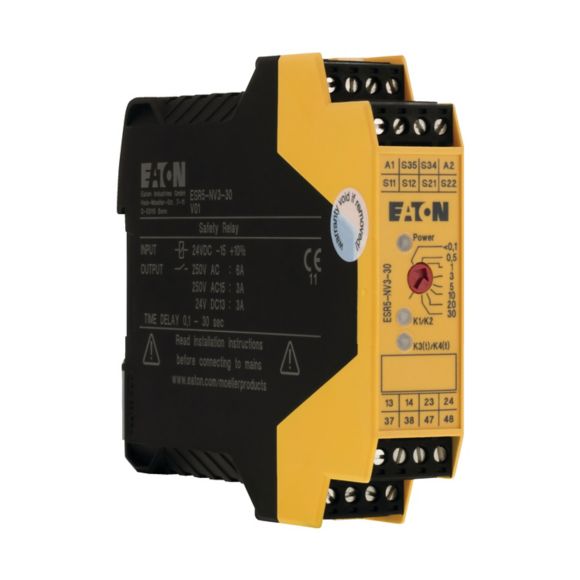

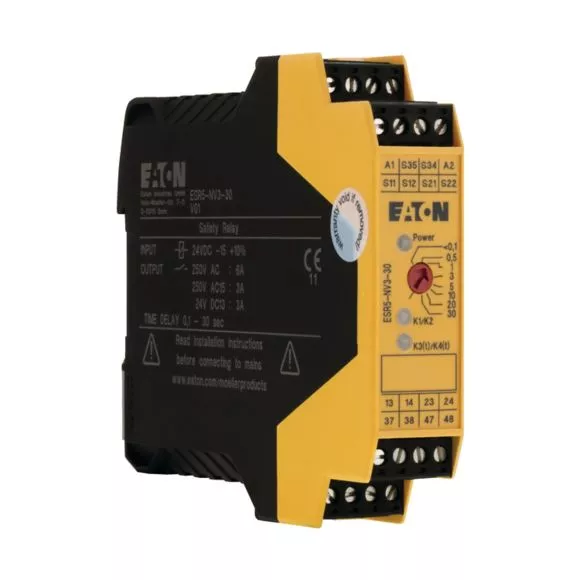

ESR5-NV3-30 Przekaźnik bezpieczeństwa
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 118705 |
| GTIN(EAN) | 4015081168453 |
| Price unit | piece |
| Catalog price | 3 348,06 zł (2 722,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik bezpieczeństwa dwukanałowy, o opóźnionym odpadaniu, do przestawiania funkcji podstawowych Wyłączanie awaryjne / Zatrzymanie awaryjne / Zapora świetlna, napięcie zasilające 24VDC, 2 ścieżek prądu zwalniającego (IEC/EN 60204 kategoria stop 0), 2 ścieżek prądu zwalniającego (IEC/EN 60204 kategoria stop 1), 1 ścieżka prądu sygnalizacyjnego, zabezpieczenie przed dotknięciem palcem zgodne z EN 50274 przy pionowym uruchamianiu od przodu, nadaje się do kat. 4 według EN 954-1 / PL e według EN ISO 13849-1 / SILCL3 według IEC 62061 / SIL3 tylko do wymagań High-Demand, stopień ochrony IP20, miejsce montażu min IP54, atest TüV, pomiarowe napięcie udarowe 4 kV / izolacja bazowa
Additional features:
| Information | Value |
|---|---|
| Net weight: | 171 g |
| Country of origin | Niemcy |
| ETIM class: | Device for monitoring of safety-related circuits |
| Model: | Basic device |
| Suitable for monitoring of position switches: | yes |
| Suitable for monitoring of emergency-stop circuits: | yes |
| Suitable for monitoring of valves: | no |
| Suitable for monitoring of optoelectronic protection equipment: | yes |
| Suitable for monitoring of tactile sensors: | no |
| Suitable for monitoring of magnetic switches: | no |
| Suitable for monitoring of proximity switches: | no |
| Type of electric connection: | Screw connection |
| Rail mounting possible: | yes |
| With detachable clamps: | yes |
| Evaluation inputs: | One- and two-channel |
| With start input: | yes |
| With muting function: | no |
| With feedback circuit: | yes |
| Release-delay: | 0.1 - 30 s |
| Number of outputs, safety related, undelayed, with contact: | 2 |
| Number of outputs, safety related, delayed, with contact: | 2 |
| Number of outputs, safety related, undelayed, semiconductors: | 0 |
| Number of outputs, safety related, delayed, semiconductors: | 0 |
| Number of outputs, signalling function, undelayed, with contact: | 0 |
| Number of outputs, signalling function, delayed, with contact: | 0 |
| Number of outputs, signalling function, undelayed, semiconductors: | 0 |
| Number of outputs, signalling function, delayed, semiconductors: | 0 |
| Type of safety according to IEC 61496-1: | None |
| Stop category according to IEC 60204: | 0 |
| Performance level according to EN ISO 13849-1: | Level e |
| SIL according to IEC 61508: | 3 |
| With approval for BG BIA: | no |
| With approval according to UL: | yes |
| Width: | 22.5 mm |
| Height: | 99 mm |
| Depth: | 114.5 mm |
| With approval for TÜV: | yes |
| Voltage type (supply voltage): | AC |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 24 - 24 V |
| Power consumption: | 7.8 W |
| Type of control voltage 1: | DC |
| Control voltage 1: | 24 - 24 V |
| Type of control voltage 2: | DC |
| Control voltage 2: | 24 - 24 V |
| Voltage type (operating voltage): | DC |
| Operating voltage AC 50 Hz: | 0 - 0 V |
| Operating voltage AC 60 Hz: | 0 - 0 V |
| Operating voltage DC: | 24 - 24 V |
| Rated switch current: | 5 A |
