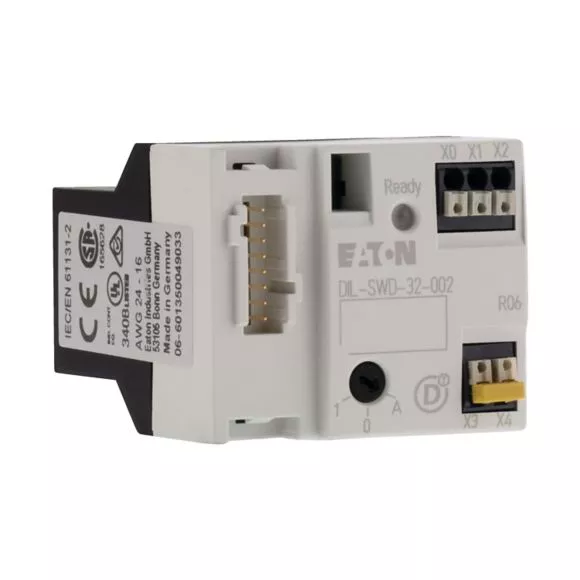

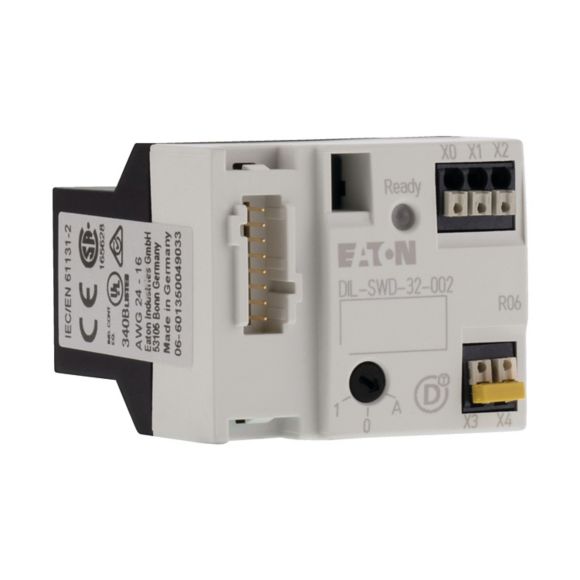

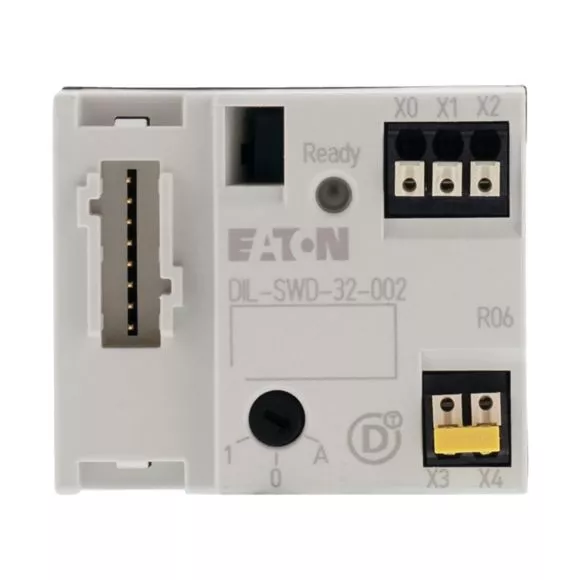

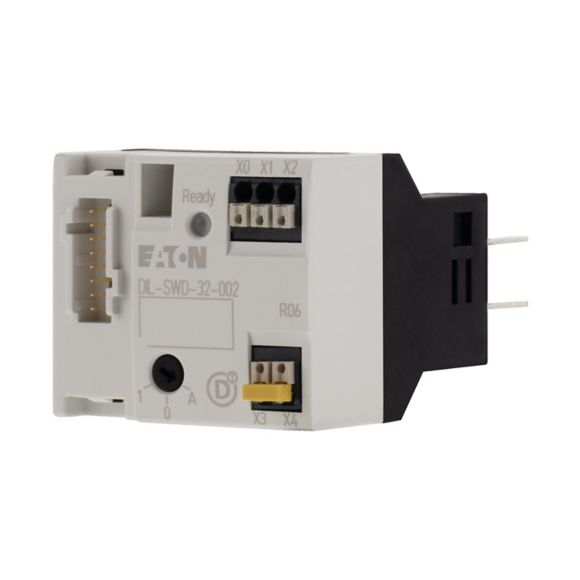

DIL-SWD-32-002 Moduł SmartWire-DT dla styczników DILM, auto/ręka
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 118561 |
| GTIN(EAN) | 4015081168316 |
| Price unit | piece |
| Catalog price | 562,97 zł (457,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Element funkcyjny SmartWire-DT (Slave) do decentralnego uruchamiania styczników DIL/ kombinacji rozruszników silników o napięciu cewki 24VDC. 2 wejść cyfrowych do styków bezpotencjałowych (np. łączniki pomocnicze wyłącznika silnikowego), pokrętło automatycznego/ręcznego sterowania stycznikiem. Funkcje: Wzbudzanie stycznika, komunikat zwrotny stanu stycznika, komunikat zwrotny wejść cyfrowych, komunikat zwrotny położenia pokrętła
Additional features:
| Information | Value |
|---|---|
| Net weight: | 37 g |
| Country of origin | Niemcy |
| ETIM class: | Fieldbus, decentr. periphery - digital I/O module |
| Supply voltage AC 50 Hz: | 0 - 0 V |
| Supply voltage AC 60 Hz: | 0 - 0 V |
| Supply voltage DC: | 15 - 15 V |
| Voltage type (supply voltage): | DC |
| Number of digital inputs: | 2 |
| Number of digital outputs: | 1 |
| Digital inputs configurable: | no |
| Digital outputs configurable: | no |
| Input current at signal 1: | 3 mA |
| Permitted voltage at input: | 15 - 15 V |
| Type of voltage (input voltage): | DC |
| Type of digital output: | None |
| Output current: | 0.5 A |
| Permitted voltage at output: | 20.4 - 28.8 V |
| Type of output voltage: | DC |
| Short-circuit protection, outputs available: | no |
| Number of HW-interfaces industrial Ethernet: | 0 |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 0 |
| Number of HW-interfaces RS-422: | 0 |
| Number of HW-interfaces RS-485: | 0 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces USB: | 0 |
| Number of HW-interfaces other: | 1 |
| With optical interface: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for KNX: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | yes |
| Radio standard Bluetooth: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| IO link master: | no |
| System accessory: | yes |
| Degree of protection (IP): | IP20 |
| Type of electric connection: | Spring clamp connection |
| Time delay at signal change: | 10 - 84 ms |
| Fieldbus connection over separate bus coupler possible: | yes |
| Rail mounting possible: | no |
| Wall mounting/direct mounting: | no |
| Front built-in possible: | no |
| Rack-assembly possible: | no |
| Suitable for safety functions: | no |
| SIL according to IEC 61508: | None |
| Performance level according to EN ISO 13849-1: | None |
| Appendant operation agent (Ex ia): | no |
| Appendant operation agent (Ex ib): | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 45 mm |
| Height: | 38 mm |
| Depth: | 72 mm |
| Supporting protocol for EtherCAT: | no |
| Certified for UL hazardous location class I: | no |
| Certified for UL hazardous location class II: | no |
| Certified for UL hazardous location class III: | no |
| Certified for UL hazardous location division 1: | no |
| Certified for UL hazardous location division 2: | no |
| Certified for UL hazardous location group A (acetylene): | no |
| Certified for UL hazardous location group B (hydrogen): | no |
| Certified for UL hazardous location group C (ethylene): | no |
| Certified for UL hazardous location group D (propane): | no |
| Certified for UL hazardous location group E (metal dusts): | no |
| Certified for UL hazardous location group F (carbonaceous dusts): | no |
| Certified for UL hazardous location group G (non-conductive dusts): | no |
