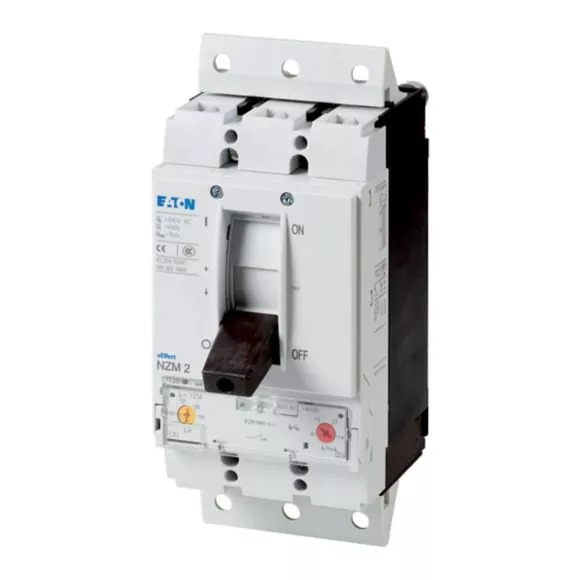

NZMH2-M80-SVE Wyłącznik mocy 3-bieg.80A wersja wtykowa
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 113360 |
GTIN(EAN) | 4015081128952 |
Price unit | piece |
Catalog price | 3 697,85 zł (3 006,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki serii NZM..-M swoimi zaledwie czterema kompaktowymi wielkościami sprawdzają się we wszystkich zastosowaniach oraz nadają się na rynek IEC. Montaż jest zawsze elastyczny za pomocą modułowych grup funkcyjnych. Z termomagnetycznym wyzwalaczem do ochrony silnika. Wskazówki: klasa wyzwolenia 10A., IEC/EN 60947-4-1, IEC/EN 60947-2 wyłączniki naprądowe spełniają wszystkie wymogi kategorii użytkowej AC-3.
Additional features:
Information | Value |
---|---|
Net weight: | 2,756 kg |
Country of origin | Rumunia |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 63 - 80 A |
Adjustment range undelayed short-circuit release: | 640 - 1120 A |
With thermal overload protection: | yes |
Phase failure sensitive: | no |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 690 - 690 V |
Rated permanent current Iu: | 80 A |
Rated operation power at AC-3, 230 V: | 22 kW |
Rated operation power at AC-3, 400 V: | 45 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Rocker lever |
Device construction: | Built-in device plug-in technique |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 130 kA |
Degree of protection (IP): | IP20 |
Height: | 245 mm |
Width: | 105 mm |
Depth: | 180 mm |
Power loss: | 20.5 W |
