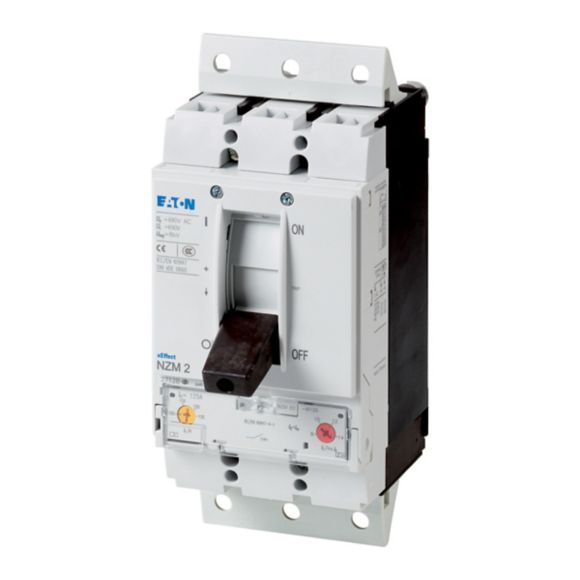

NZMC2-M160-SVE Wyłącznik mocy 3-bieg.160A wersja wtykow
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 113224 |
| GTIN(EAN) | 4015081127597 |
| Price unit | piece |
| Catalog price | 6 127,70 zł (4 981,87 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki serii NZM..-M swoimi zaledwie czterema kompaktowymi wielkościami sprawdzają się we wszystkich zastosowaniach oraz nadają się na rynek IEC. Montaż jest zawsze elastyczny za pomocą modułowych grup funkcyjnych. Z termomagnetycznym wyzwalaczem do ochrony silnika. Wskazówki: klasa wyzwolenia 10A., IEC/EN 60947-4-1, IEC/EN 60947-2 wyłączniki naprądowe spełniają wszystkie wymogi kategorii użytkowej AC-3.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,785 kg |
| Country of origin | Rumunia |
| ETIM class: | Motor protection circuit-breaker |
| Overload release current setting: | 125 - 160 A |
| Adjustment range undelayed short-circuit release: | 1280 - 2240 A |
| With thermal overload protection: | yes |
| Phase failure sensitive: | no |
| Switch off technique: | Thermomagnetic |
| Rated operating voltage: | 690 - 690 V |
| Rated permanent current Iu: | 160 A |
| Rated operation power at AC-3, 230 V: | 45 kW |
| Rated operation power at AC-3, 400 V: | 90 kW |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| Device construction: | Built-in device plug-in technique |
| With integrated auxiliary switch: | no |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 22.5 kA |
| Degree of protection (IP): | IP20 |
| Height: | 245 mm |
| Width: | 105 mm |
| Depth: | 180 mm |
| Power loss: | 38.4 W |
