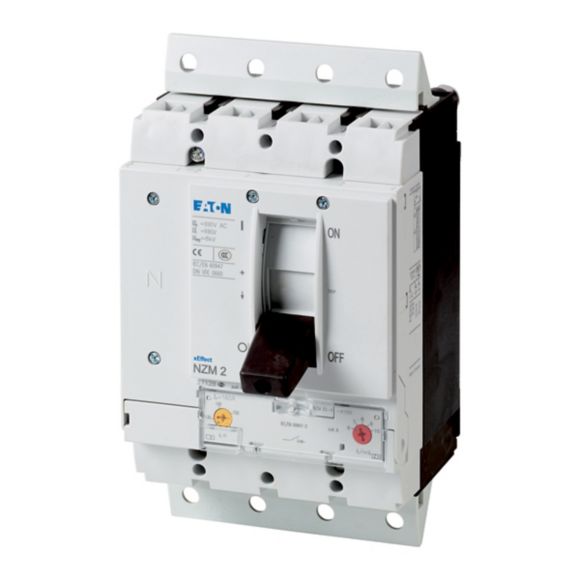

NZMB2-4-A125-SVE Wyłącznik mocy 4-bieg. 125A wersja wtyko
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 113207 |
GTIN(EAN) | 4015081127429 |
Price unit | piece |
Catalog price | 6 197,16 zł (5 038,34 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 3,604 kg |
Country of origin | Rumunia |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated permanent current Iu: | 125 A |
With integrated under voltage release: | no |
Number of poles: | 4 |
Overload release current setting: | 100 - 125 A |
Number of auxiliary contacts as change-over contact: | 0 |
Rated voltage: | 440 - 440 V |
Power loss: | 27.6 W |
Degree of protection (IP): | IP20 |
Position of connection for main current circuit: | Front side |
Motor drive integrated: | no |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Rocker lever |
With switched-off indicator: | no |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 25 kA |
Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
Adjustment range undelayed short-circuit release: | 6 - 10 A |
Suitable for DIN rail (top hat rail) mounting: | no |
Integrated earth fault protection: | no |
Motor drive optional: | yes |
Device construction: | Built-in device plug-in technique |
DIN rail (top hat rail) mounting optional: | yes |
Complete device with protection unit: | yes |
