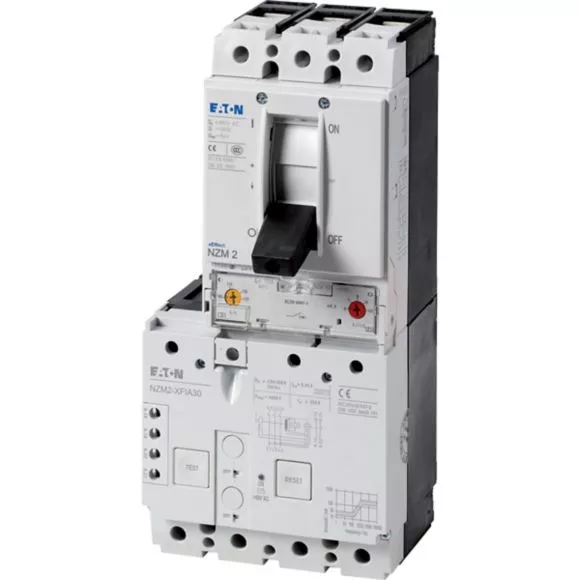

NZMH2-A250-FIA30 Wyłącznik 3-bieg. z wyzwalaczem różnicow
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 112629 |
| GTIN(EAN) | 4015081124244 |
| Price unit | piece |
| Catalog price | 29 133,03 zł (23 685,39 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki serii NZM..-A swoimi zaledwie czterema kompaktowymi wielkościami sprawdzają się we wszystkich zastosowaniach na rynku IEC. Montaż jest zawsze elastyczny za pomocą modułowych grup funkcyjnych. Z termomagnetycznym wyzwalaczem do ochrony instalacji i kabli. Wskazówki: Bez aprobaty UL/CSA, nadaje się do używania w systemach trójfazowych, wewnętrzne zasilanie elektryczne Ue = 50 - 400 V, uniwersalny na zasadzie prądów sumujących w zakresie częstotliwości prądu uszkodzeniowego 0 - 100 kHz, gotowy do podłączenia zestaw wydajnego wyłącznika i ochronnego modułu nadmiarowo prądowego
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,776 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current Iu: | 250 A |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Overload release current setting: | 200 - 250 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated voltage: | 400 - 400 V |
| Degree of protection (IP): | IP20 |
| Position of connection for main current circuit: | Front side |
| Motor drive integrated: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Type of control element: | Rocker lever |
| With switched-off indicator: | no |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 150 kA |
| Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
| Adjustment range undelayed short-circuit release: | 1500 - 2500 A |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Integrated earth fault protection: | no |
| Motor drive optional: | yes |
| Device construction: | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
