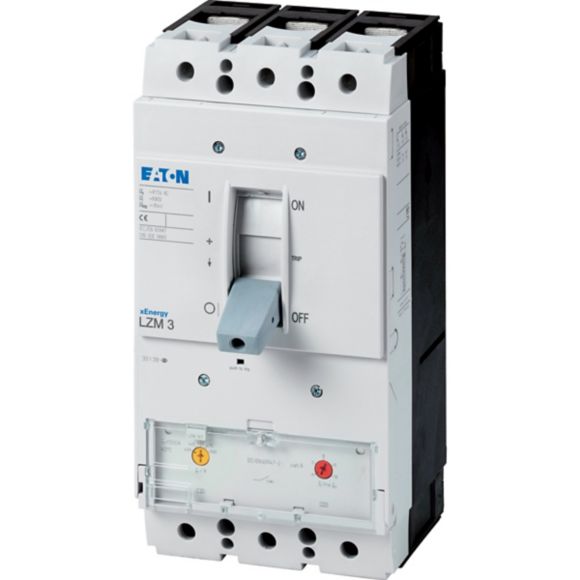

LZMN3-A400-I Wyłącznik mocy LZM3, 3-bieg., Ir=320-400A
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 111967 |
GTIN(EAN) | 4015081115150 |
Price unit | piece |
Catalog price | 7 903,98 zł (6 426,00 zł + 23% VAT) |
Sale price | from 2 608,31 zł (2 120,58 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Rated permanent current Iu: | 400 A |
Number of poles: | 3 |
Overload release current setting: | 320 - 400 A |
Number of auxiliary contacts as change-over contact: | 0 |
Rated voltage: | 690 - 690 V |
Degree of protection (IP): | IP20 |
Position of connection for main current circuit: | Front side |
Motor drive integrated: | no |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Rocker lever |
With switched-off indicator: | no |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 50 kA |
Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
Adjustment range undelayed short-circuit release: | 2400 - 4000 A |
Suitable for DIN rail (top hat rail) mounting: | no |
Integrated earth fault protection: | no |
Motor drive optional: | yes |
Device construction: | Built-in device fixed built-in technique |
DIN rail (top hat rail) mounting optional: | no |
Complete device with protection unit: | yes |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
Elektret o/Zamieście
Tymbark, Zamieście 31
Tymbark, Zamieście 31
Distance:
3 sztuki
2 608,31 zł/szt.
Buy online
Buy / order
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-04-15 00:03:25 |
External links: |
