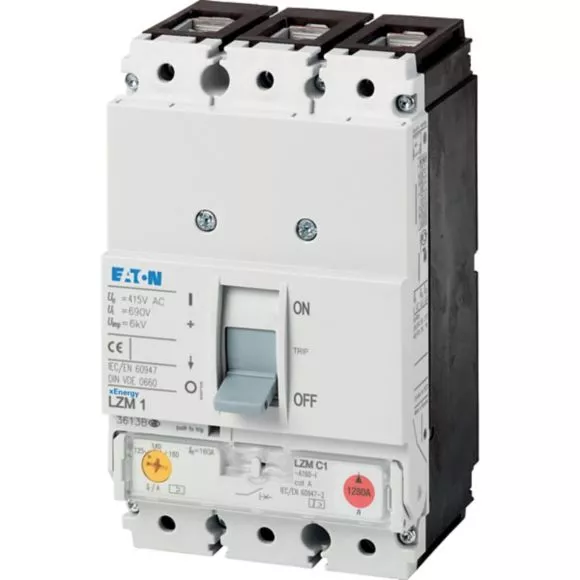

LZMC1-A32-I Wyłącznik mocy LZM1, 3-bieg., Ir=25-32A
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 111890 |
| GTIN(EAN) | 4015081114382 |
| Price unit | piece |
| Catalog price | 1 499,37 zł (1 219,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Die Schutzschalter der Power Defense Serie mit dem elektronischen Auslösesystem Power Expert Release (PXR) decken mit nur vier kompakten Baugrößen Anwendungsfälle für den Anlagenschutz ab und sind für den IEC-Markt geeignet. Testfunktion und Einstellungen können über Mikro-USB-Schnittstelle direkt am Schutzschalter und über die Power Xpert Protection Manager(PXPM)-Software konfiguriert werden. Die Montage gestaltet sich dank modularer Funktionsgruppen flexibel und kann durch das umfangreiche Zubehörprogramm ergänzt werden.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,014 kg |
| Country of origin | Rumunia |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Rated permanent current Iu: | 32 A |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Overload release current setting: | 25 - 32 A |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated voltage: | 690 - 690 V |
| Degree of protection (IP): | IP20 |
| Position of connection for main current circuit: | Front side |
| Motor drive integrated: | no |
| Type of electrical connection of main circuit: | Frame clamp |
| Type of control element: | Rocker lever |
| With switched-off indicator: | no |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 36 kA |
| Adjustment range short-term delayed short-circuit release: | 0 - 0 A |
| Adjustment range undelayed short-circuit release: | 350 - 350 A |
| Suitable for DIN rail (top hat rail) mounting: | no |
| Integrated earth fault protection: | no |
| Motor drive optional: | no |
| Device construction: | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
